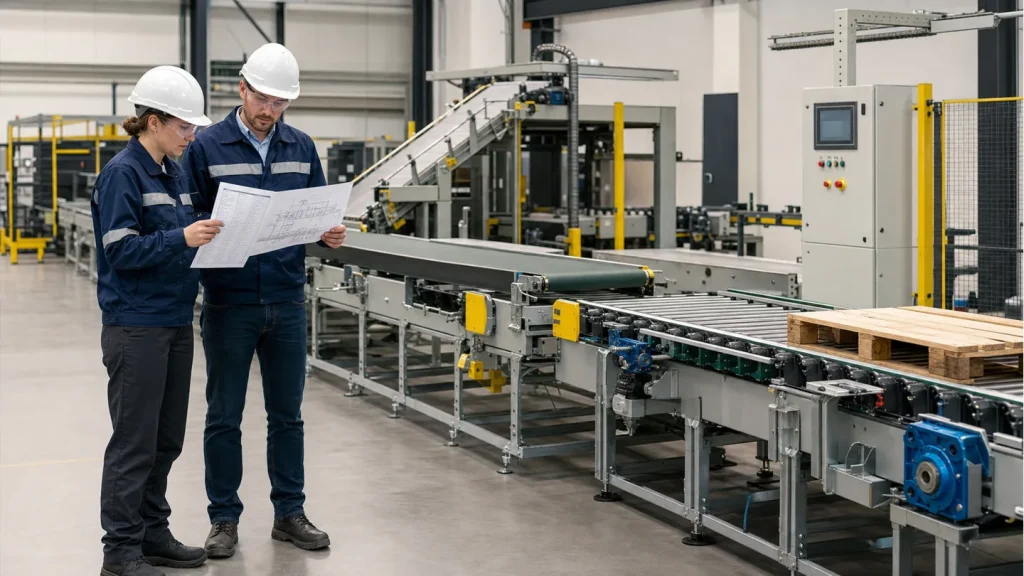

Conveyor system components are easier to specify when a project engineer thinks in functions rather than part names. A conveyor is not only a belt, roller bed, chain track, or motor. It is a group of mechanical, electrical, control, safety, and maintenance items that must work together around the load, the route, the rate target, and the site conditions. When one component is treated as an afterthought, the whole line can become harder to install, adjust, clean, protect, or expand.
This guide explains the main component groups that appear in belt, roller, pallet, transfer, and automated conveyor projects. It is written for engineers preparing an RFQ, reviewing a supplier proposal, or checking a layout before approval. It does not assume a specific model, certification, brand, load rating, or site result. Use it as a checklist for what should be visible in a quotation, drawing package, and technical discussion.
1. Start with the load and process before selecting parts
The correct component set depends on the load. Cartons, totes, trays, bags, pallets, fixtures, drums, and loose products all behave differently. Even two cartons with the same nominal size can need different conveyor details if one is soft, one is overfilled, or one must stay precisely oriented for scanning or labeling.
Before choosing conveyor parts, confirm load dimensions, weight range, bottom surface, travel direction, stability, temperature, dust or moisture exposure, required spacing, and downstream acceptance. Then match those facts to the project route and rate. This first step connects closely with industrial conveyor system design, because component selection should support the full process rather than a single isolated section.
2. Frame, supports, and structure
The frame is the physical base for the conveyor. It carries the load, keeps components aligned, supports guarding and sensors, and provides the anchor points used during installation. Frame material, section length, leg design, leveling method, cross bracing, and mounting holes all affect how easily the conveyor can be installed and maintained.
Project engineers should check the difference between conveying width, frame width, and overall width. A drawing may show a clean centerline, but the real installed system also needs space for supports, side guides, motors, guards, sensors, cable trays, cabinet doors, and maintenance access. When reviewing a layout, compare component envelope dimensions with the method described in how to read a conveyor layout drawing.
Frame review questions
Ask where the conveyor will be anchored, whether the floor can accept those anchors, how height will be adjusted, and which parts must be removable after installation. If the system sits near walls, columns, drains, dock doors, or machine guards, a frame that works in a catalog may still need a custom support plan.
3. Conveying surface: belt, rollers, chain, or modular media
The conveying surface is the component group that touches the load. For a belt conveyor, that may include the belt, slider bed, return rollers, belt tracking hardware, take-up, scraper, and pulley set. For roller conveyors, it includes the roller type, roller pitch, axle style, bearings, drive bands or chains, and side frame. For pallet and fixture systems, chain, roller, slat, or modular surfaces may be used depending on load support and transfer needs.
The surface should match the smallest and largest load, not just the average load. Short cartons can fall between rollers if pitch is too wide. Flexible bags can drag on transitions. Pallets with poor bottom boards can behave unpredictably on narrow supports. Smooth products may need friction; fragile products may need gentler transfers; dusty or wet areas may need surfaces that can be cleaned without trapping debris.
4. Drive components and power transmission
Drive components convert power into conveyor motion. A typical drive group may include a motor, gearbox, motorized pulley, drive roller, sprocket, chain, timing belt, coupling, shaft, bearings, torque arm, guarding, and mounting plate. The exact arrangement depends on conveyor type, load, speed, duty cycle, available power, controls strategy, and maintenance preference.
Project engineers should avoid treating drive selection as a hidden supplier detail. The proposal should state the intended drive concept, not necessarily every proprietary dimension, but enough to confirm access, guarding, replacement space, electrical interface, and expected speed range. If the line has a rate target, drive assumptions should also be checked against conveyor capacity vs conveyor speed. A fast motor does not automatically create useful throughput if the layout has transfer, accumulation, or downstream limits.
5. Rollers, pulleys, bearings, and wear parts
Rollers, pulleys, bearings, and wear parts are small in comparison with the full conveyor, but they often control reliability and service time. For roller conveyors, roller material, diameter, pitch, bearing type, axle retention, and coating affect noise, tracking, load support, and replacement effort. For belt conveyors, pulleys, idlers, return rollers, belt cleaners, wear strips, and take-up components affect belt life and tracking stability.
When reviewing conveyor rollers or conveyor pulleys, ask which parts are standard spares, which are custom, and which can be replaced without moving adjacent equipment. A low-cost component can become expensive if the only replacement method requires dismantling guards, lifting the conveyor, or stopping a critical production line for longer than planned.
6. Guides, side rails, stops, and product control
Guides and product control components keep loads stable and correctly positioned. They may include side rails, adjustable brackets, lane dividers, end stops, pop-up stops, backstops, centering devices, escapements, pushers, lift gates, and reject devices. Their purpose is not only to prevent product from falling. They also define product pitch, orientation, release timing, scan position, and safe operator interaction.
Side guide design should consider product variation. A rigid guide that works for one carton size may damage a wider carton or fail to control a smaller one. Adjustable guides help mixed-product lines, but only if operators can set them accurately and repeatedly. For pallet loads, guides and stops must consider runner direction, fork access, unstable boards, and load overhang.
7. Transfer components and direction changes
Transfer points deserve separate attention because they combine geometry, motion, timing, and product behavior. A transfer can be a simple dead plate, a nose-over belt, a powered roller transition, a chain transfer, a right-angle transfer, a pop-up belt, a turntable, a pusher, a lift, or a merge. The best choice depends on product bottom surface, minimum length, transfer gap, speed, orientation, and required cycle time.
When a proposal includes a transfer conveyor, ask for the sequence in plain language. Which sensor confirms product arrival? What releases the load? What happens when the downstream section is full? How is the rejected or rotated load controlled? A drawing can show the equipment position, but the transfer logic explains whether the component can support the intended process.
| Component group | What it controls | Engineering check | RFQ detail to provide |
|---|---|---|---|
| Frame and supports | Alignment, height, anchor points, service access | Overall width, leg locations, floor constraints | Layout, elevations, site photos, obstructions |
| Conveying surface | Load support, friction, tracking, cleanability | Smallest load, bottom surface, product stability | Load samples, dimensions, weight range |
| Drive package | Motion, speed range, torque, maintenance access | Duty cycle, guarding, power and controls | Voltage, rate target, operating schedule |
| Transfer devices | Direction change, spacing, product handoff | Gap, orientation, cycle time, blocked-line behavior | Process sequence and downstream limits |
| Controls and sensors | Release logic, accumulation, safety interaction | Zone length, sensor view, cabinet location | I/O needs, PLC responsibility, operator stations |
8. Sensors, controls, and operator interfaces
Controls are part of the conveyor system, not a separate afterthought. Sensors, photoeyes, encoders, barcode readers, scanners, VFDs, PLCs, control panels, HMI screens, push buttons, stack lights, e-stops, and safety circuits all affect how the mechanical line behaves. For simple manual movement, controls may be minimal. For automated conveyor systems, the control package is central to the project.
Project engineers should confirm responsibility boundaries early. Who provides the main control panel? Who programs the PLC? Who integrates upstream and downstream equipment? Who supplies network communication, field wiring, safety validation, and commissioning support? A conveyor component list that omits these items can make two quotes look similar when their real scopes are different.
9. Guarding, safety devices, and access components
Access review
Safety components include fixed guards, removable covers, interlocked doors, emergency stops, pull cords, light curtains, warning devices, safe access platforms, crossing points, and lockout points. The exact requirement depends on local regulations, plant standards, risk assessment, conveyor layout, and operator tasks. The supplier should not invent a safety claim without a documented basis, and the buyer should not approve a layout that leaves obvious pinch points or access conflicts unresolved.
Access is part of safety. Maintenance staff need room to inspect drives, change rollers, adjust tracking, clean debris, open cabinets, and reach sensors. During installation, installers also need space to level sections, align transfers, anchor supports, pull cable, and test movement. If a component cannot be reached after installation, it should be redesigned before fabrication.
10. Spares, documentation, and lifecycle components
A complete conveyor project should identify common spares and maintenance documentation. Spare rollers, belts, bearings, drive belts, sensors, guards, wear strips, and fasteners may not all be required on day one, but critical parts should be named clearly enough for future ordering. Drawings should show revision status, part identifiers, and the component groups that matter for maintenance.
For international projects, ask whether spare parts use standard dimensions that can be sourced locally or whether they must be ordered from the original supplier. There is nothing wrong with custom components when the application requires them, but the project team should understand the lead time and replacement method before the purchase order is issued.
11. How to compare component scope between suppliers
Two conveyor quotes may use the same title and still include different component scopes. One quote may include controls, guards, sensors, installation supervision, drawings, and commissioning. Another may include only mechanical equipment. One may assume a simple transfer; another may include a driven transfer device with logic and sensors. Price comparison is meaningful only after the component boundary is clear.
Create a short scope matrix before choosing a supplier. List frame, conveying surface, drives, guides, transfers, controls, sensors, safety devices, installation, drawings, spares, and after-sales support. Mark each item as included, excluded, buyer-supplied, or open. This method is especially useful when comparing carton conveyors, tote systems, pallet lines, and mixed conveyor routes inside one project.
12. What to send for an accurate component-based RFQ
A practical RFQ should let the supplier match components to the real application. Send load dimensions, weight range, product photos, bottom surface details, rate target, route sketch, infeed and discharge heights, available utilities, site constraints, cleaning needs, operating schedule, control responsibility, and any existing equipment interfaces. If the project includes pallets, include pallet type, runner direction, condition variation, and fork access requirements.
ConveyorSolution can review your load data, layout, rate target, and operating constraints before recommending component groups for a conveyor proposal. The strongest request is specific: what moves, where it moves, how fast it must move, what touches it, and who will maintain it.
