A conveyor maintenance checklist is most useful when it helps a plant plan preventive service before small issues become downtime. The checklist should not be a generic form that asks someone to mark every item as acceptable. It should guide operators, maintenance technicians, engineers, and buyers to inspect the conveyor points that affect safety, product flow, belt or roller life, cleaning time, and future replacement planning.

This guide is written for teams that operate belt conveyors, roller conveyors, pallet conveyors, transfer sections, and mixed conveyor lines. It does not assume a specific conveyor model, belt material, plant output, motor size, certification, or service interval. The goal is to help you build a practical maintenance routine and collect the information a supplier needs when you request parts, repairs, upgrades, or a new conveyor quotation.

Start With the Conveyor Duty, Not the Form

A checklist should match how the conveyor is used. A light carton conveyor in a dry packing area does not need the same inspection focus as a pallet transfer conveyor, a dusty belt conveyor, or a washdown food line. Before choosing daily, weekly, monthly, or shutdown checks, define the product, load range, operating hours, cleaning method, environment, and consequence of downtime.

If the line is still in the planning stage, connect the maintenance checklist with the full industrial conveyor system design discussion. Maintenance access, guard removal, spare-part strategy, controls visibility, and transfer cleanup should be considered before fabrication. If these details are left until commissioning, the plant may inherit a conveyor that runs but is difficult to keep reliable.

Map the Conveyor Into Service Zones

Long conveyors are easier to maintain when the checklist is arranged by zone. A zone can be a drive end, tail end, loading point, transfer point, curve, merge, accumulation area, lift, pallet stop, inspection station, or discharge section. Each zone should have a clear name that operators and technicians use consistently.

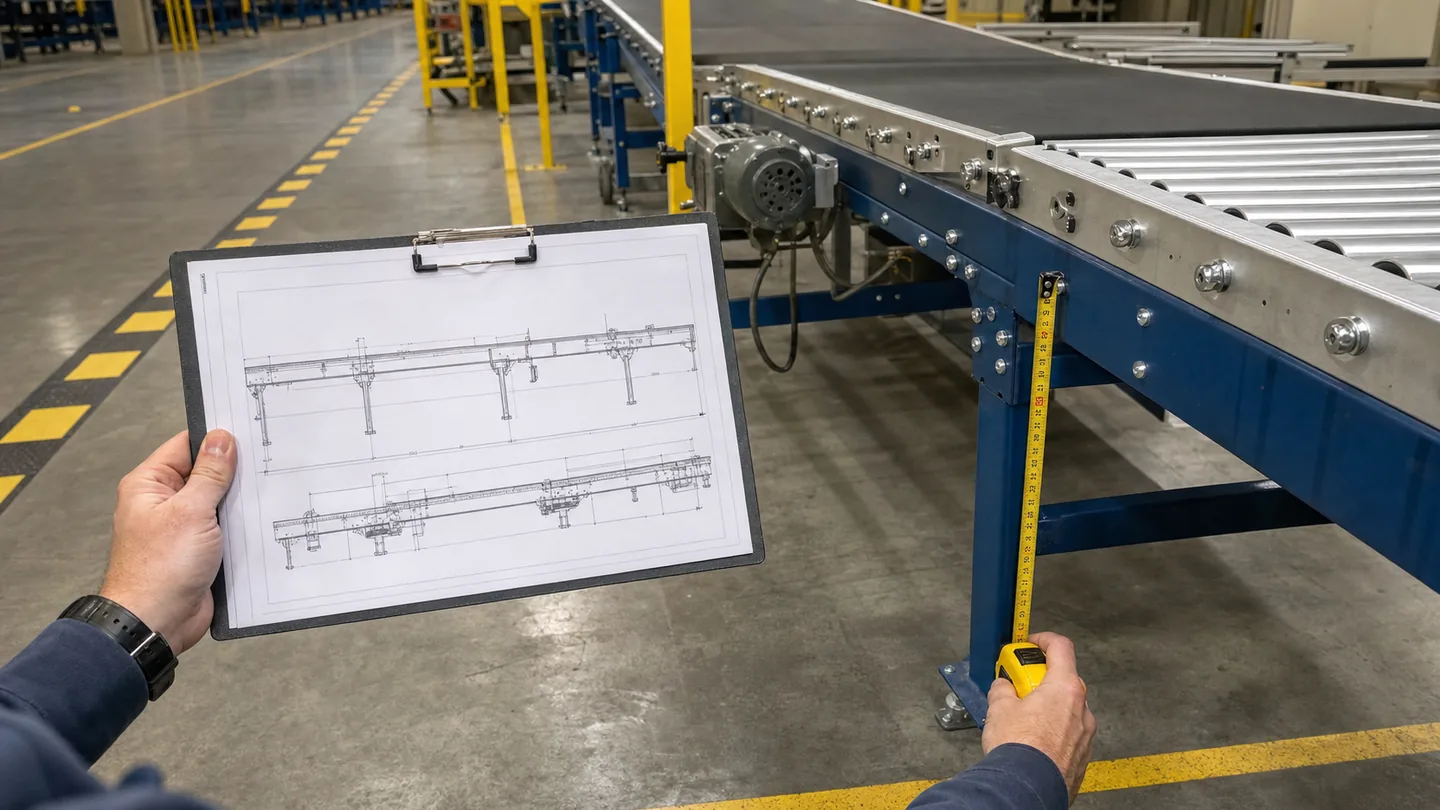

For new equipment, compare the zone names with the conveyor layout drawing. The drawing can show where drives, supports, sensors, guards, transfer points, and access doors are located. If the checklist uses names that do not appear on the drawing, future troubleshooting becomes slower because people may describe the same location in different ways.

Daily Operator Checks

Daily checks should be short, visible, and realistic. Operators are not usually expected to dismantle guards or measure detailed alignment. Their role is to notice changes: unusual noise, vibration, belt drift, roller stoppage, product skewing, product damage, loose guards, debris buildup, oil marks, air leaks, poor sensor response, or repeated jams.

A daily checklist should include the line condition at startup, during normal running, and at the end of the shift if cleaning is required. Ask for comments when the same issue appears repeatedly. A line that needs the same adjustment every morning is giving maintenance data, not just creating a nuisance.

Daily Checklist Items

• Walk the conveyor path and confirm guards, covers, and emergency stops are in place.
• Listen for new noise from rollers, bearings, chains, belts, drives, or transfer points.
• Watch whether loads travel centered, stable, and at the expected spacing.
• Check for visible debris, product buildup, spillage, dust, or liquid near moving parts.
• Record repeated stops, sensor faults, jams, belt wander, or product damage.

Weekly Mechanical Inspection

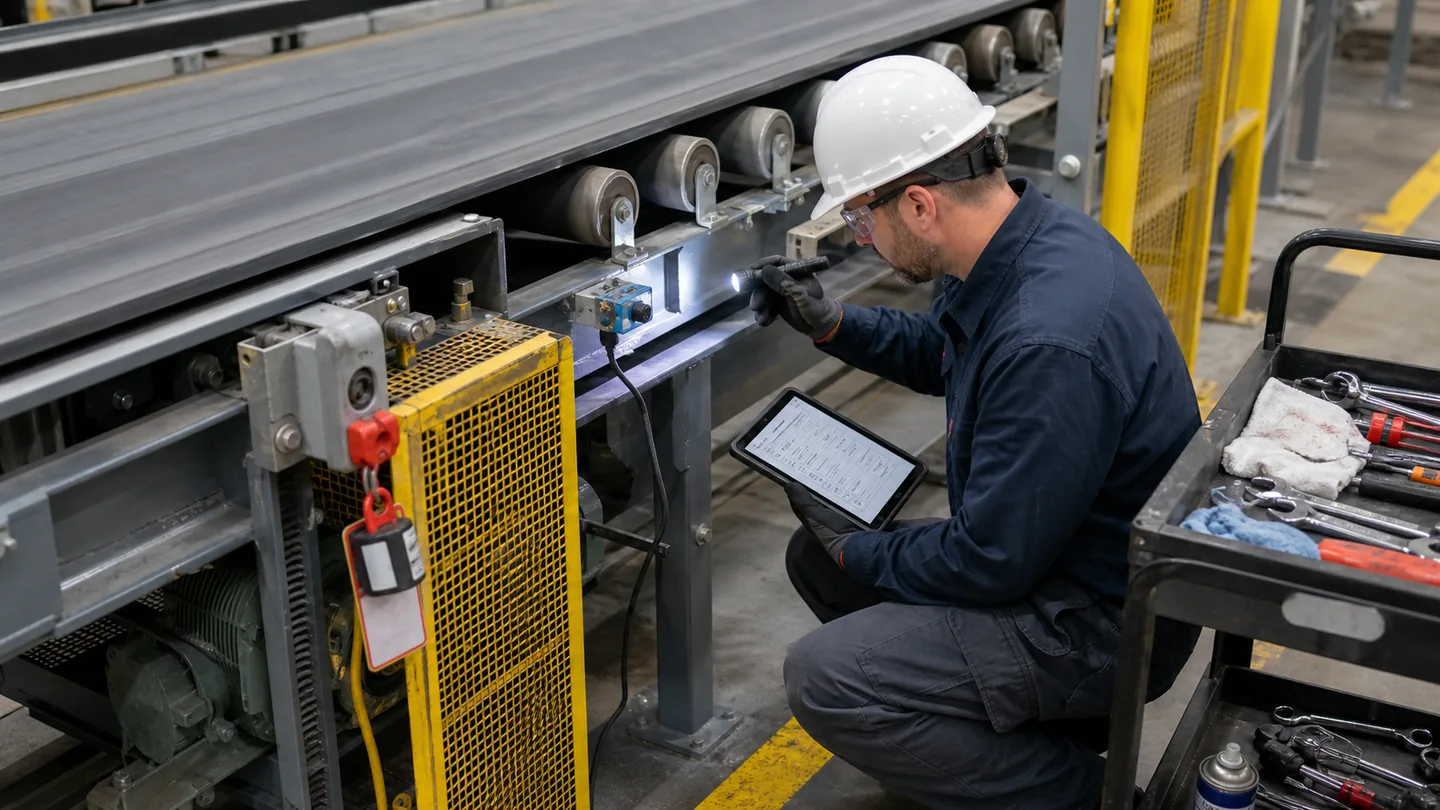

Weekly inspections can go deeper than operator checks. The technician should inspect the conveyor while following the plant’s lockout, guarding, and safe-access rules. The purpose is to find wear and looseness early enough to plan a repair, not to wait until the next shutdown reveals a failed bearing or damaged belt.

For belt conveyors, include belt surface condition, belt edge condition, tracking behavior, pulley lagging, roller rotation, scraper condition, skirt condition, tensioning position, and buildup around the tail area. If the plant already sees belt wander, use the more detailed process in conveyor belt tracking problems before assuming that a simple adjustment will solve the issue.

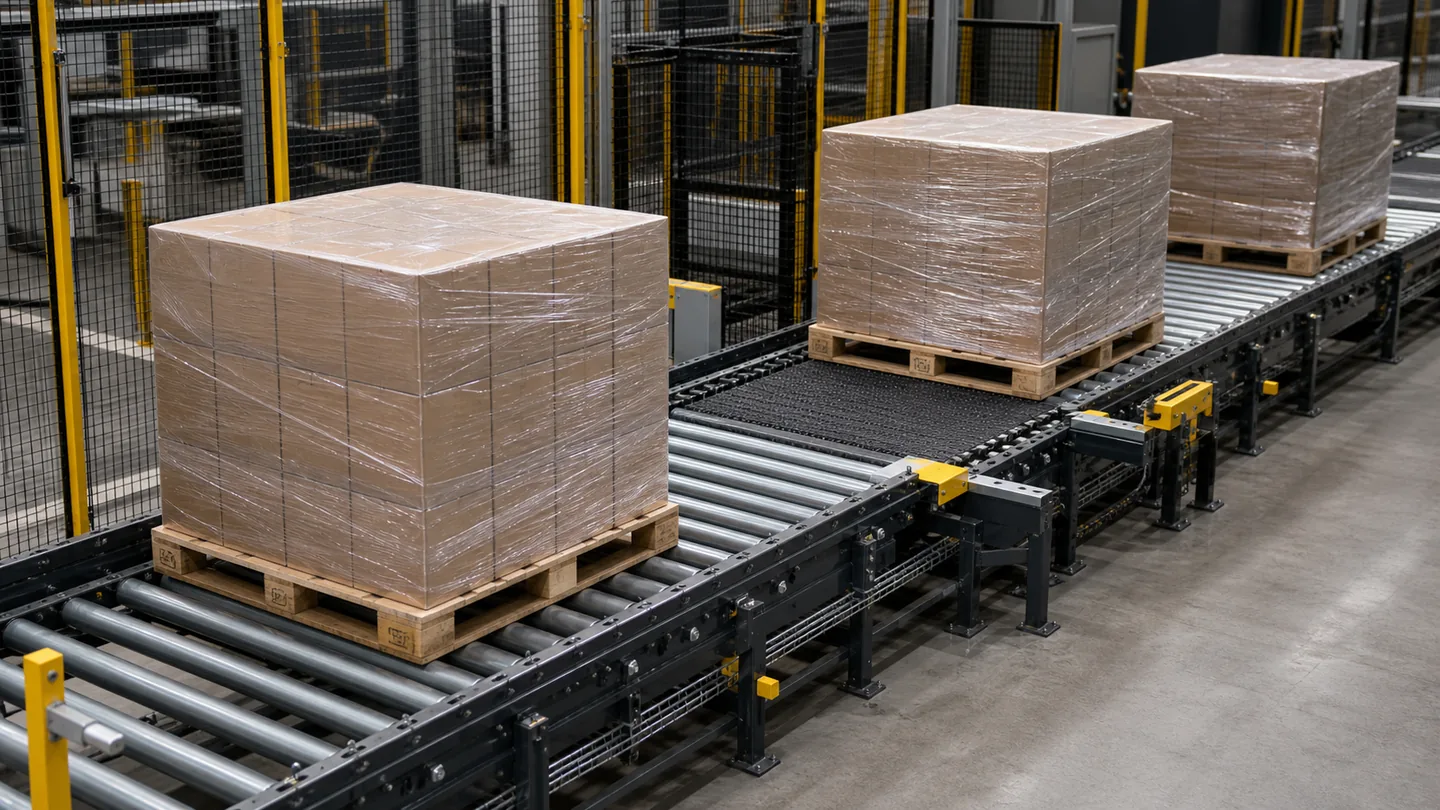

For roller and pallet conveyors, check roller freedom, damaged tubes, noisy bearings, chain or belt drive condition, sprocket or pulley condition, stop blades, guides, side frames, supports, and the condition of accumulation zones. When replacement parts are needed, the checklist should identify the exact section and component type so the supplier can match the request without guessing.

Monthly Preventive Maintenance Checks

Monthly checks should confirm the items that are not practical to verify every week. This may include drive mounting bolts, gearbox condition, coupling condition, chain tension, belt tension range, frame level, anchor condition, electrical cabinet cleanliness, cable routing, sensor brackets, pneumatic fittings, and access panels.

The right inspection interval depends on use. A high-hour conveyor may need these checks more often, while a low-use spare line may need less frequent mechanical work but closer attention before it returns to production. Avoid copying a schedule from another plant without checking the load, environment, cleaning method, and downtime risk.

Transfer and Loading Zone Checks

Transfer points deserve their own maintenance line because many conveyor problems begin where product enters, changes direction, or leaves the conveyor. Poor loading can create belt tracking problems, spillage, dust, damaged packaging, carryback, and uneven wear. A checklist that only looks at the drive end can miss the real source of downtime.

When inspecting a transfer, record product landing position, drop height concerns, side loading, bounce, chute buildup, skirt wear, belt support, cleanup frequency, and guard access. The design principles in belt conveyor transfer point design are useful when repeated maintenance notes show that the transfer geometry, not the maintenance routine, is causing the problem.

Keep Safety and Lockout Checks Separate

A maintenance checklist should support safety, but it should not replace the plant’s safety procedures. Keep lockout, guarding, stored energy, elevated work, confined access, and hot-work requirements in the approved safety system. The conveyor checklist can remind people to follow those procedures, record missing guards, and flag unsafe access, but it should not invent new safety rules without plant approval.

For RFQ planning, note any service task that requires difficult access, awkward body position, guard removal, lifting equipment, or special tools. These are design facts. A conveyor that requires excessive effort for routine inspection may need better access doors, removable covers, different component placement, or a revised support layout.

Document Wear Before Ordering Parts

Good maintenance records reduce confusion when parts are ordered. A request for a replacement roller, belt, bearing, pulley, sensor, wear strip, or guard should include the conveyor zone, component dimensions, photos, part markings if available, operating condition, and urgency. If the original supplier drawings are available, include the drawing reference and revision.

This is especially important for projects with multiple conveyor types. A plant may use conveyor rollers, belt return rollers, pallet conveyor rollers, and motorized rollers on the same site. Photos alone may not be enough if the image does not show shaft end style, tube width, mounting method, or nearby components.

Use Maintenance Records to Improve Future Specifications

Preventive maintenance records are not only for service teams. They also help engineers and buyers write better specifications. If a conveyor repeatedly suffers from debris buildup, hard-to-reach sensors, frequent belt edge wear, difficult guard removal, or slow part replacement, that information should be included in the next RFQ.

For example, a future buyer may ask for better access around drives, standard spare parts, improved loading geometry, different roller spacing, easier belt cleaning, or clearer sensor labeling. These requests are easier to justify when maintenance notes show frequency, location, downtime impact, and the current workaround.

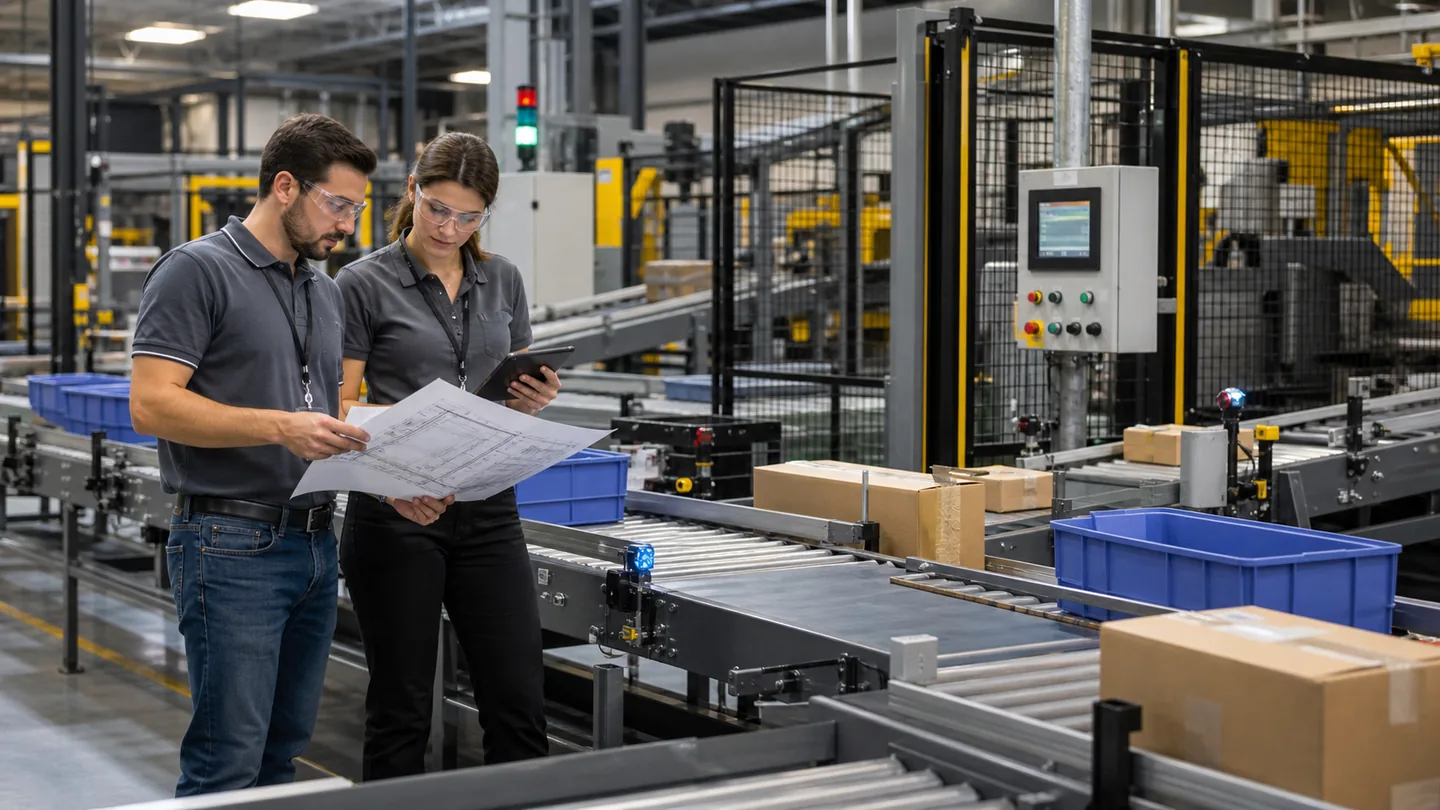

Review Throughput and Maintenance Together

Some maintenance issues are actually rate or control issues. If product spacing is too tight, a merge is unstable, or the line runs faster than downstream equipment can accept, the conveyor may experience repeated stops and jams even when the mechanical parts are healthy. In that case, compare the checklist findings with conveyor throughput calculations and the control sequence.

Do not treat every jam as a maintenance failure. Record whether the jam happens at a transfer, sensor, accumulation zone, curve, incline, or operator workstation. Then check whether product size variation, spacing, speed, or downstream timing is part of the cause.

Build a Practical Shutdown List

A shutdown checklist should focus on work that cannot be done safely or efficiently during normal operation. This may include belt replacement, pulley inspection, bearing replacement, frame repair, anchor correction, deep cleaning, chain replacement, sensor rewiring, guard modification, or conveyor realignment.

Before a planned shutdown, confirm parts, tools, access equipment, drawings, lockout points, waste handling, and restart testing. If the shutdown depends on supplier support, send the checklist findings early. A supplier can respond more accurately when they know the conveyor type, affected zone, operating symptoms, photos, and required downtime window.

Shutdown Preparation Questions

• Which tasks require the conveyor to be locked out and unavailable?
• Which parts must be on site before work starts?
• Which checks confirm that the conveyor is ready to return to production?
• Who owns final signoff: maintenance, operations, engineering, or quality?

What to Send With a Service RFQ

When you request service, replacement parts, or a conveyor upgrade, send more than a problem statement. A useful RFQ should include conveyor type, product handled, load dimensions and weight range, operating hours, line speed or rate target if known, photos, layout location, inspection notes, fault history, and the preferred repair window.

Also state the outcome you need. Do you want a spare part quote, a maintenance visit, a redesigned transfer, a belt replacement plan, an installation review, or a new conveyor section? If the request involves multiple components, the overview in conveyor system components can help organize the discussion by frame, drive, support surface, controls, safety, and maintenance items.

Simple Conveyor Maintenance Checklist Template

The following template can be adapted to your own plant documents. Keep it short enough that people will actually use it, but detailed enough to identify repeat problems. Add columns for zone, finding, photo reference, priority, owner, due date, and closure note.

Core Template

• Conveyor name, zone, date, inspector, and operating condition.
• Visible safety, guard, access, and housekeeping issues.
• Belt, roller, chain, drive, frame, support, and fastener condition.
• Transfer point, loading point, discharge, and product-flow observations.
• Sensor, stop, guide, control, and fault-history notes.
• Required action, part request, shutdown need, and responsible owner.

Turn the Checklist Into a Continuous Improvement Tool

A conveyor maintenance checklist works best when the plant reviews the records, not only the equipment. Look for repeated issues by zone, component, product type, shift, cleaning method, or operating condition. Repetition shows where a design change, training update, spare-part change, or supplier review may be more valuable than another adjustment.

For new projects, maintenance history should influence the next specification. For existing lines, it should help the team decide whether to repair, upgrade, or replace a conveyor section. The checklist becomes a bridge between daily operation and long-term conveyor reliability.

If you are preparing a conveyor maintenance plan, troubleshooting repeat downtime, or requesting replacement parts, collect the checklist records, photos, layout references, and operating conditions before asking for a quote. ConveyorSolution can review those inputs and discuss a practical service or conveyor upgrade approach for your application. Contact the team when you are ready to compare options or request an RFQ.

Belt conveyor transfer point design has a direct effect on product flow, spillage, dust, belt wear, cleanup time, and the reliability of the line after installation. A transfer point is not just the place where one conveyor drops onto another. It is the controlled handoff between product, belt, chute, skirt sealing, supports, guarding, access, and the next process.

This guide is written for plant engineers, project buyers, maintenance teams, and operations managers preparing a conveyor RFQ or reviewing an existing transfer problem. It does not assume a specific product, belt width, plant output, chute material, motor size, or certification. The goal is to help buyers describe the real operating conditions clearly so suppliers can design a cleaner and more serviceable transfer.

Why Transfer Points Decide Conveyor Cleanliness

A conveyor can have the right belt, motor, pulleys, and controls but still create daily cleanup if the product enters the receiving belt poorly. When material lands off center, at the wrong angle, from too much height, or with uncontrolled impact, it can bounce, slide, spill, and push the belt toward one side. The visible symptom may be material on the floor, but the root cause is often transfer geometry.

Clean product flow starts with how the material leaves the upstream equipment and how it meets the receiving conveyor. That handoff should match the product size, flow rate, fragility, moisture, dust level, and required belt speed. It also needs enough access for inspection and cleaning, not just enough space for the equipment to fit on the drawing.

Start With the Product and Flow Path

The first design question is simple: what exactly is moving through the transfer? Boxes, bags, parcels, bakery trays, bottles, loose parts, grains, pellets, powders, and metal stampings all behave differently. A smooth sealed chute for one product may damage another product or create a blockage in a different plant.

Before comparing quotes, define the product size range, weight range, surface condition, moisture, temperature, dust level, breakage risk, and normal flow rate. If the product mix changes by shift or season, include that range as well. A transfer designed only around the average product can fail when the smallest item catches a gap or the largest item strikes a guide.

Control Drop Height and Entry Angle

Drop height controls impact energy. A high drop may cause product bounce, belt cover damage, noise, dust release, and faster wear at the loading zone. The best transfer is usually not the one with the shortest equipment footprint. It is the one that lets the product land in a controlled way while preserving the required throughput.

Entry angle matters as much as height. Product should arrive in a direction that supports belt travel, not fight it. A side-loaded transfer can work, but it must be designed intentionally with guides, chute geometry, belt support, and enough settling distance. If product repeatedly lands off center, the transfer may contribute to conveyor belt tracking problems even when the belt and pulleys are otherwise acceptable.

Center the Load Before It Becomes a Belt Problem

A receiving conveyor is easier to keep clean when the product lands near the intended centerline. Off-center loading can overload one side of the belt, press product into the skirt area, create uneven dust patterns, and increase edge wear. On parcel, tote, or carton lines, off-center loading can also create skewed product orientation that affects downstream scanning, sorting, or accumulation.

For new systems, compare the transfer centerline with the complete conveyor layout drawing. Look for product direction, elevation change, approach angle, maintenance clearance, and whether an operator can see the loading point safely. A drawing that shows only conveyor rectangles may not be enough to confirm product behavior.

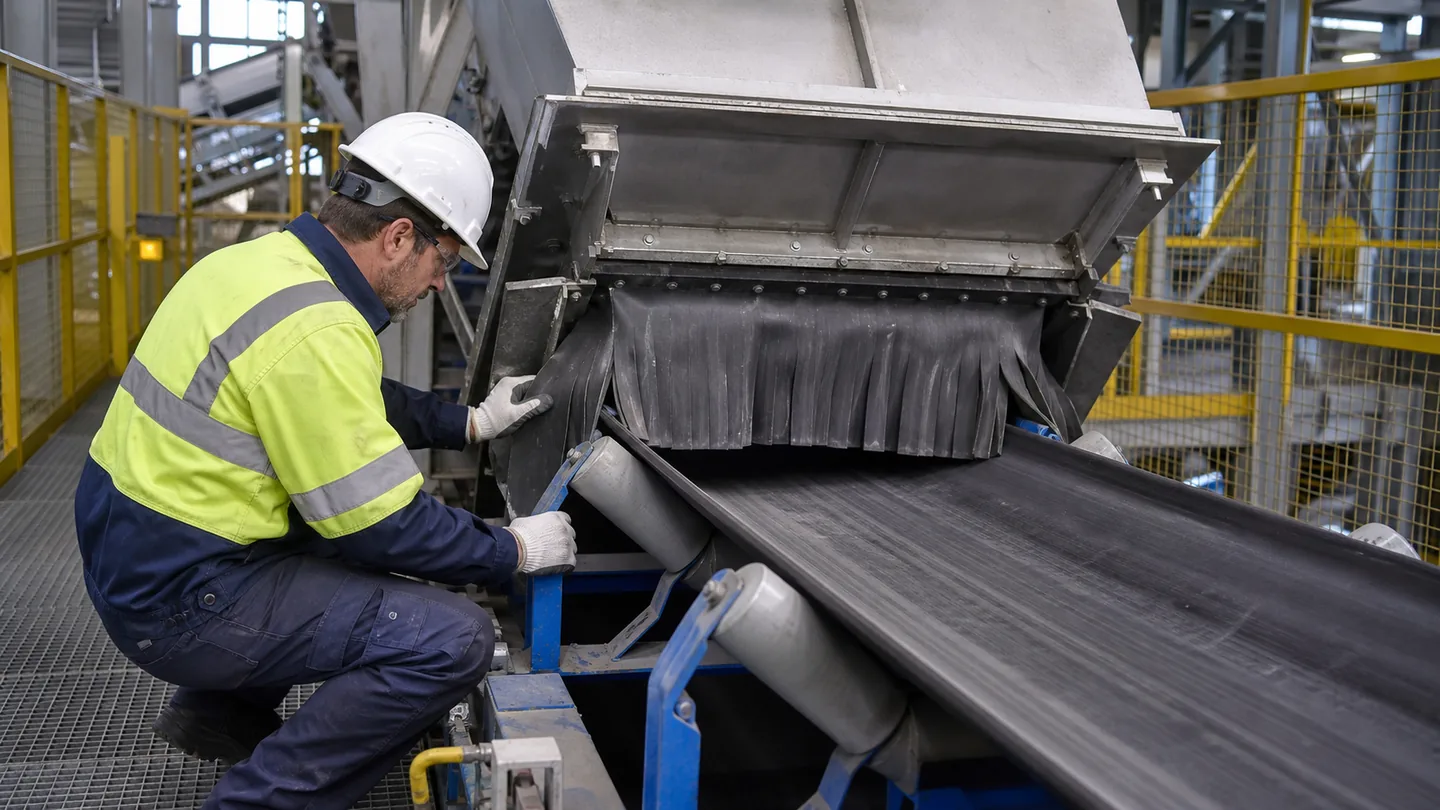

Support the Belt Through the Loading Zone

The belt needs stable support where product lands. If the receiving belt sags between rollers, product can trap in gaps, skirt seals can lose contact, and impact can accelerate belt damage. Support details may include closely spaced idlers, impact rollers, slider beds, cradles, or other application-specific support methods.

When reviewing belt conveyor rollers, support beds, and conveyor pulleys, ask how the loading zone handles impact, belt sag, cleaning, and replacement access. The design should protect the belt without creating a service task that requires dismantling half of the transfer structure.

Use Skirting as a Seal, Not a Substitute for Bad Geometry

Skirt boards and seals help contain material at the loading zone, but they should not be asked to fix uncontrolled transfer geometry. If the product is entering with too much side force, too much bounce, or too much height, tighter skirting may only hide the problem while increasing friction, belt wear, and maintenance demand.

A good seal follows stable product flow. It should contain the normal material path, allow practical adjustment, and avoid rubbing harder than needed against the belt. For dusty or granular materials, the sealing approach should be matched with chute shape, belt support, and cleaning access. For packaged goods, guides should protect product orientation without pinching cartons or forcing items into a jam point.

Common Signs the Skirt Area Is Doing Too Much Work

Look for polished wear marks on one side, rubber dust near the seal, product buildup under the chute, frequent manual cleaning, recurring belt edge damage, or operators adjusting guides to compensate for product drift. These signs do not automatically prove the transfer is wrong, but they should trigger a review before another set of replacement seals is ordered.

Plan for Dust, Fines, and Product Carryback

Fine material changes the transfer design. Dust and small particles can escape through tiny gaps, collect around bearings, contaminate nearby equipment, or create housekeeping work that was not included in the original cost comparison. Carryback on the belt can also return material to unexpected areas, especially near pulleys and return rollers.

For dusty applications, describe the particle size, moisture, cleaning method, operating hours, and whether dust collection or enclosure is expected. Do not state that the conveyor must be dust-free unless the plant has defined what that means. A practical RFQ should explain the required level of containment and the inspection points needed to keep the system working.

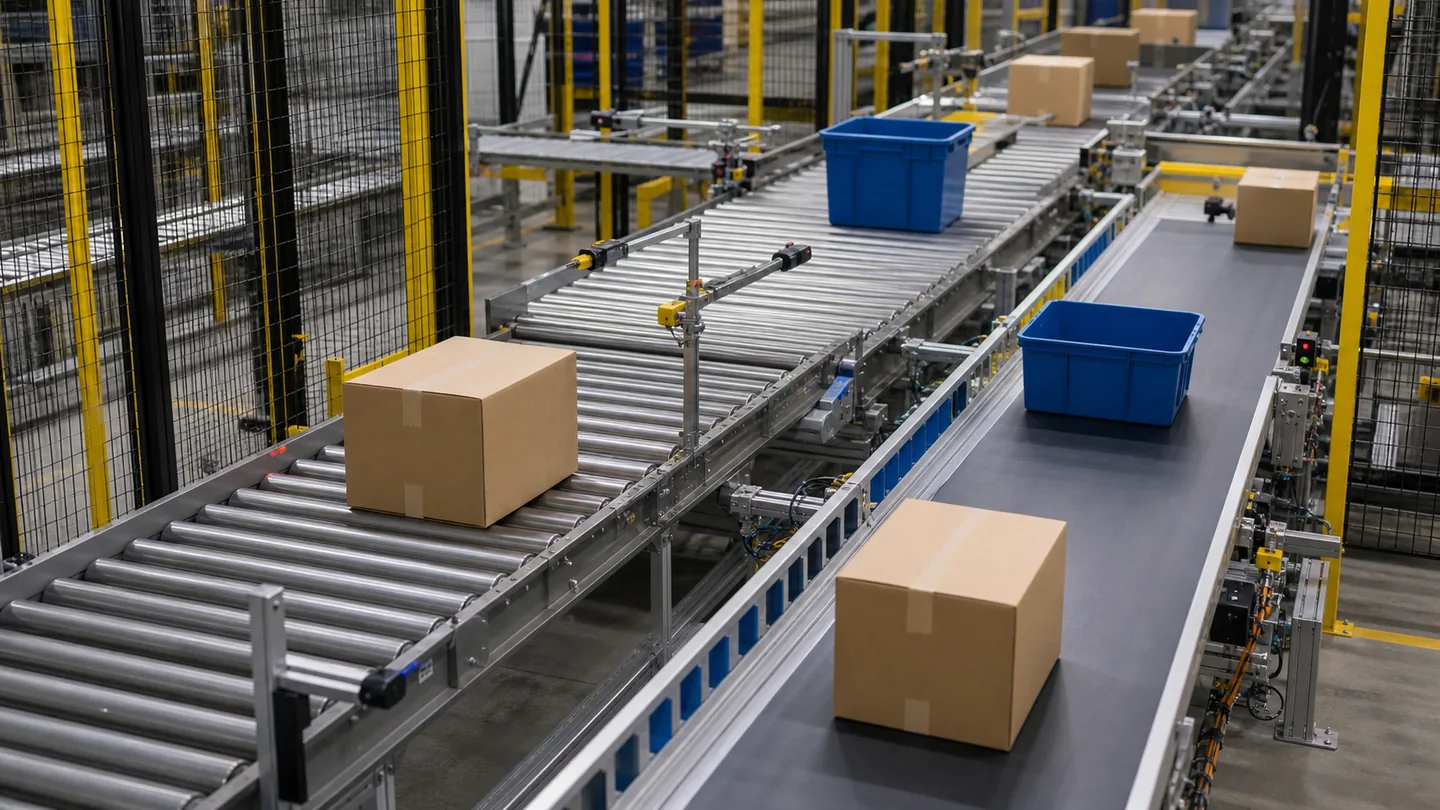

Connect Transfer Design With Throughput

Throughput is not only a belt speed calculation. A transfer point must handle the actual arrival pattern of the product. A line may average the required rate but still overload the transfer in short surges. Accumulated cartons, irregular bag spacing, or batch discharge from upstream equipment can create a peak condition that is more important than the hourly average.

Use a practical conveyor throughput calculation to define the normal rate, peak rate, and product spacing. If the upstream conveyor releases items in groups, include that detail. For bulk flow, explain whether material arrives continuously, in batches, or from a controlled feeder. Suppliers need these details to size the loading zone and chute properly.

Make Maintenance Access Part of the Design

A clean transfer point still needs inspection. Guards, covers, chutes, sensors, and skirt assemblies should be arranged so maintenance teams can see wear points and clean safely. If the only way to inspect the transfer is to remove several guards in a cramped area, the plant may delay maintenance until spillage becomes obvious.

Access should be reviewed with the same seriousness as the drive, belt, and frame. Connect the transfer discussion with broader conveyor system components, because the chute, frame, belt support, bearings, guards, sensors, and cleaning points all affect the real ownership cost of the system.

What Operators Should Be Able to Check

Operators or maintenance staff should be able to observe product landing position, skirt condition, belt support condition, buildup, belt edge clearance, guard condition, and any visible dust escape. The required access depends on plant safety rules, but the design should not assume that hidden transfer points will stay clean without routine checks.

Do Not Ignore Controls and Product Detection

Mechanical design gets most of the attention, but controls can affect transfer cleanliness. Poor timing between conveyors can create product crowding, hard impacts, or gaps that disturb flow. Sensors placed too close to the transfer may become dirty or may not see skewed products consistently.

For packaged products, define whether the transfer needs product spacing, metering, accumulation control, or integration with downstream equipment. For bulk or loose material, describe any feeder, gate, diverter, or stop-start behavior that changes flow into the receiving belt. A transfer point is part of the process, not a passive gap between machines.

What to Include in a Transfer Point RFQ

A useful RFQ should include more than conveyor length and belt width. Provide product details, upstream equipment type, downstream equipment type, flow direction, elevation difference, target throughput, peak throughput, operating hours, cleaning method, dust or spillage concerns, available footprint, and photos or sketches of the current area if it is a retrofit.

For new lines, connect the transfer request with the full industrial conveyor system design discussion so the supplier can understand layout, product path, access, controls, and installation constraints together. For replacement or retrofit work, include a short note explaining what problem the current transfer creates and how often it affects production.

Simple RFQ Checklist

Before sending the request, collect product dimensions, weight range, flow rate, peak condition, upstream discharge height, receiving belt width, current spillage location, cleaning frequency, available side clearance, photos of the loading zone, and the shutdown window for installation. If the transfer affects downstream equipment, include that equipment in the photo set as well.

When a Retrofit Is Enough and When Redesign Is Better

Some transfer problems can be improved with better guides, skirt adjustment, belt support, chute liners, or access changes. Others need a larger redesign because the product is entering from the wrong height, angle, or speed. Replacing wear parts repeatedly may be cheaper in the short term, but it can be expensive if it does not remove the cause of spillage.

If the conveyor is old, overloaded, hard to clean, or no longer matched to the product mix, ask whether a redesigned section is more practical than another repair. A supplier should be able to explain what is being corrected and what operating details still need confirmation before quoting.

Final Takeaway

Cleaner conveyor flow depends on transfer point design as much as it depends on the belt itself. Control the drop, center the load, support the belt, match skirting to stable geometry, plan for dust and carryback, and give maintenance teams practical access. These details reduce cleanup work and make the conveyor easier to operate after installation.

If you are planning a new belt conveyor, troubleshooting a messy loading zone, or preparing a transfer retrofit, collect the product, layout, throughput, and access details before requesting a quote. ConveyorSolution can review those inputs and discuss a practical transfer approach for your application. Contact the team when you are ready to compare options or request an RFQ.

Conveyor belt tracking problems are frustrating because the visible symptom is simple while the cause may sit elsewhere in the system. A belt that runs to one side may be reacting to pulley alignment, frame level, uneven loading, damaged rollers, buildup, belt splice quality, take-up position, or a transfer point that pushes product off center. If the team only adjusts the nearest tracking screw, the belt may look better for a short time and then drift again.

This guide is written for plant engineers, maintenance teams, project buyers, and operations managers who need a practical way to diagnose belt tracking before approving repairs or asking for a new conveyor quote. It does not assume a specific conveyor model, belt material, motor size, plant output, or certification. The goal is to separate repeatable checks from guesswork so the supplier receives useful facts and the plant avoids repeated adjustment work.

What Belt Tracking Really Means

Belt tracking describes how consistently the belt stays centered, or intentionally positioned, across the pulley face, slider bed, support rollers, and return path. On a short flat belt conveyor, the tracking window may look simple. On a longer line with transfers, curves nearby, inclines, guides, and frequent starts, small errors can multiply across the route.

A belt does not usually wander without a force acting on it. Something is steering it, loading it, dragging it, twisting it, or allowing it to respond unevenly. That is why tracking should be treated as a system condition rather than a single adjustment point.

Common Symptoms to Record Before Making Adjustments

Before touching the conveyor, record what the belt is doing. Note whether it drifts at startup, after several minutes, only when loaded, only when empty, only after cleaning, or only near a specific product changeover. Also record which edge moves, where it first becomes visible, and whether the belt returns when the direction or load changes.

Photos and short videos are useful if they show the whole section, not only the worst edge. For a future RFQ, this evidence helps a supplier understand whether the issue relates to the belt, the frame, the transfer, or the operating process. It also connects with broader industrial conveyor system design, where layout, load path, maintenance access, and controls should be reviewed together.

Start With Safety and Operating Conditions

Tracking checks should follow the plant’s lockout, guarding, and maintenance rules. A moving belt can create pinch points at pulleys, rollers, guides, and transfer points. Do not reach into a running conveyor to move a belt by hand or clear debris. When observation during motion is required, use safe viewing positions and keep guards in place unless the plant’s approved procedure allows otherwise.

Also confirm the operating condition you are testing. A belt may track differently when empty, fully loaded, wet, dusty, warm, cold, or after a washdown. The best troubleshooting notes state the condition clearly so the next person is not comparing two different situations.

Check the Frame, Level, and Squareness

A conveyor belt tries to follow the structure beneath it. If the frame is twisted, one support leg is low, or a pulley is not square to the conveyor centerline, the belt may drift even if the belt itself is new. This is especially important after relocation, floor work, impact damage, or rushed installation.

Start with a visual inspection of the side frames, cross members, support legs, and anchor points. Look for bent brackets, loose fasteners, missing shims, or frame sections pulled out of line by adjacent equipment. For new or modified lines, compare the installed route with the approved drawing. A drawing review like reading a conveyor layout drawing can reveal whether the installed conveyor has enough clearance for alignment, cleaning, and service.

Inspect Pulleys, Rollers, and the Return Path

Pulleys and rollers guide the belt through both the carry side and return side. A seized roller, worn bearing, crowned pulley problem, damaged lagging, or heavy buildup can steer the belt gradually. Because the return path is less visible, teams sometimes miss debris, loose return rollers, or belt rubbing under the conveyor.

When checking conveyor pulleys and conveyor rollers, look for smooth rotation, consistent contact, clean surfaces, and secure mounting. Do not assume the problem is located where the belt finally touches a guard. The steering influence may start several rollers upstream, at the take-up, or on the return side.

Look at Belt Condition and Splice Quality

The belt itself can create tracking problems if it is stretched unevenly, damaged at the edge, contaminated, cupped, or spliced out of square. A belt that has been overloaded, stored poorly, cut incorrectly, or repaired under pressure may not behave like a straight, consistent conveying surface.

Signs the Belt May Be Part of the Cause

Watch for frayed edges, cracks, uneven thickness, ripples, delamination, hard spots, soft spots, and a splice that passes through the conveyor with a visible side movement. A belt that tracks well until the splice reaches a pulley may need belt work rather than repeated pulley adjustment. If the belt is part of a larger conveyor belt replacement decision, ask the supplier what belt construction, surface, splice method, and edge finish fit the product and environment.

Review Loading, Transfer, and Product Position

Many tracking problems are really loading problems. If cartons, bags, trays, or parts enter off center, strike the side guide, or drop onto the belt from one side, the belt can be pushed or loaded unevenly. The conveyor may appear misaligned even though the mechanical structure is acceptable.

Review the transfer point, product direction, chute angle, belt speed, and side guide contact. If the line runs at different rates through the day, compare tracking at the slowest and fastest expected conditions. This is related to conveyor throughput calculations, because a rate change can alter spacing, impact, accumulation pressure, and product presentation at the loading point.

When Guides Help and When They Hide the Issue

Side guides can keep products positioned, but they should not be used to force a mistracking belt into place. If the belt edge is rubbing the guide, frame, or guard, the guide may hide the symptom while creating heat, dust, edge wear, and future downtime. Use guides to manage product flow, not to compensate for a poorly aligned belt.

Adjust in Small Steps and Track the Result

Once the basic checks are complete, make adjustments slowly and record each change. Mark the starting position of take-up screws or tracking brackets before moving them. Adjust one point at a time, run the conveyor under a defined condition, and observe whether the belt responds. Large changes can create a new problem on the opposite side or move the issue to another section.

If a supplier provides a procedure for the installed belt conveyor, follow that procedure instead of improvising. If no procedure exists, document what was adjusted, how far it moved, who approved the change, and what result was observed. This record becomes valuable if a replacement belt, frame correction, or new conveyor section is requested later.

Separate Temporary Fixes From Root-Cause Corrections

A temporary adjustment may be acceptable to keep a line running until a planned shutdown, but it should not be mistaken for a root-cause fix. If the belt repeatedly needs adjustment, the team should look for a persistent source such as frame twist, off-center loading, worn rollers, buildup, poor installation, or an unsuitable belt for the application.

For older equipment, it may be more practical to replace a damaged section, improve the transfer point, or redesign access around the take-up than to keep making small corrections. A review of conveyor system components can help the buyer decide which parts are standard spares and which details require a custom quote.

What to Include in an RFQ for Belt Tracking Support

If you ask a supplier for help, include the facts that affect tracking rather than a short message saying the belt runs to one side. Useful details include conveyor type, approximate length and width, belt material if known, product size and weight range, product entry direction, speed range, operating environment, cleaning method, photos of the head, tail, return path, take-up, and transfer point, plus any recent changes to the line.

Also state whether you need troubleshooting guidance, replacement parts, a new belt, installation support, or a redesigned conveyor section. If the system was recently installed, include the installation date and any changes made after commissioning. For projects still in planning, connect the RFQ to conveyor installation requirements so alignment access, leveling points, guards, and service clearance are not treated as afterthoughts.

Simple RFQ Checklist

Before sending the request, collect the conveyor route, belt width, useful photos, operating condition, product details, observed symptom, adjustment history, and available shutdown window. If the conveyor is part of a larger line, include the upstream and downstream equipment. A short video showing the belt from startup to steady running is often more useful than a close photo of the rubbed edge.

When a New Conveyor Design Is the Better Fix

Sometimes the tracking issue is a sign that the conveyor is being asked to do work it was not designed for. Product weight may have increased, packaging may have changed, cleaning may be harsher, the line may run faster, or the transfer may have been modified after installation. In those cases, a new belt alone may not solve the problem.

A better design may include improved loading geometry, a different belt surface, better pulley and roller access, stronger supports, clearer adjustment points, or a modified transfer. The buyer should ask for a design explanation rather than a vague promise that the belt will track. Good suppliers can explain which input data they need and how each design choice supports stable operation.

Final Takeaway

Conveyor belt tracking problems should be diagnosed as a system issue. Start with safe observation, record the symptom, check the frame and pulleys, inspect the belt and splice, review loading conditions, then adjust in controlled steps. If the problem returns, treat that as evidence that the root cause has not been removed.

For a replacement belt conveyor, tracking repair, or custom section review, prepare a clear RFQ with photos, product details, operating conditions, and the adjustment history. ConveyorSolution can review those inputs and discuss a practical conveyor approach for your application. Contact the team when you are ready to compare options or request a quote.

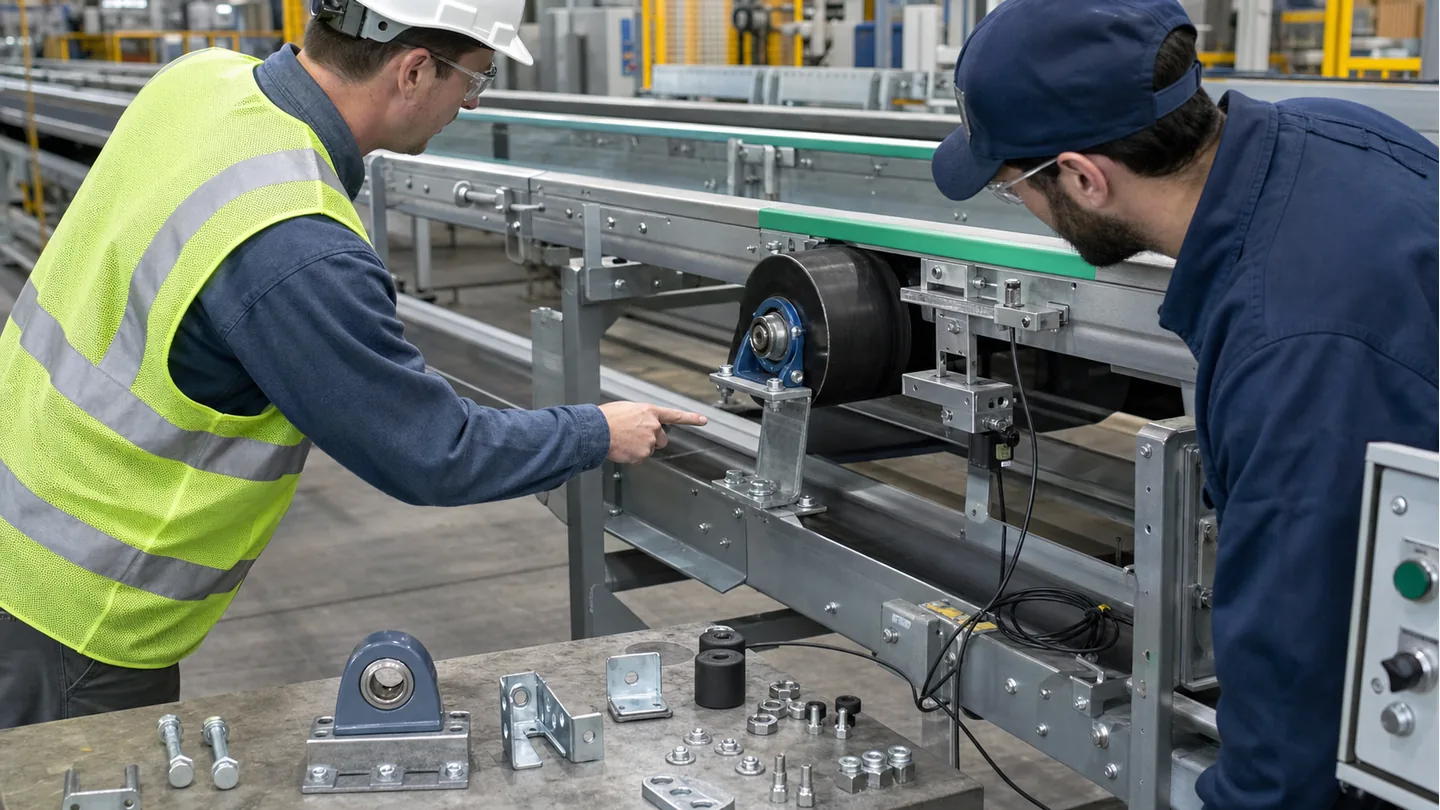

Conveyor system components are easier to specify when a project engineer thinks in functions rather than part names. A conveyor is not only a belt, roller bed, chain track, or motor. It is a group of mechanical, electrical, control, safety, and maintenance items that must work together around the load, the route, the rate target, and the site conditions. When one component is treated as an afterthought, the whole line can become harder to install, adjust, clean, protect, or expand.

This guide explains the main component groups that appear in belt, roller, pallet, transfer, and automated conveyor projects. It is written for engineers preparing an RFQ, reviewing a supplier proposal, or checking a layout before approval. It does not assume a specific model, certification, brand, load rating, or site result. Use it as a checklist for what should be visible in a quotation, drawing package, and technical discussion.

1. Start with the load and process before selecting parts

The correct component set depends on the load. Cartons, totes, trays, bags, pallets, fixtures, drums, and loose products all behave differently. Even two cartons with the same nominal size can need different conveyor details if one is soft, one is overfilled, or one must stay precisely oriented for scanning or labeling.

Before choosing conveyor parts, confirm load dimensions, weight range, bottom surface, travel direction, stability, temperature, dust or moisture exposure, required spacing, and downstream acceptance. Then match those facts to the project route and rate. This first step connects closely with industrial conveyor system design, because component selection should support the full process rather than a single isolated section.

2. Frame, supports, and structure

The frame is the physical base for the conveyor. It carries the load, keeps components aligned, supports guarding and sensors, and provides the anchor points used during installation. Frame material, section length, leg design, leveling method, cross bracing, and mounting holes all affect how easily the conveyor can be installed and maintained.

Project engineers should check the difference between conveying width, frame width, and overall width. A drawing may show a clean centerline, but the real installed system also needs space for supports, side guides, motors, guards, sensors, cable trays, cabinet doors, and maintenance access. When reviewing a layout, compare component envelope dimensions with the method described in how to read a conveyor layout drawing.

Frame review questions

Ask where the conveyor will be anchored, whether the floor can accept those anchors, how height will be adjusted, and which parts must be removable after installation. If the system sits near walls, columns, drains, dock doors, or machine guards, a frame that works in a catalog may still need a custom support plan.

3. Conveying surface: belt, rollers, chain, or modular media

The conveying surface is the component group that touches the load. For a belt conveyor, that may include the belt, slider bed, return rollers, belt tracking hardware, take-up, scraper, and pulley set. For roller conveyors, it includes the roller type, roller pitch, axle style, bearings, drive bands or chains, and side frame. For pallet and fixture systems, chain, roller, slat, or modular surfaces may be used depending on load support and transfer needs.

The surface should match the smallest and largest load, not just the average load. Short cartons can fall between rollers if pitch is too wide. Flexible bags can drag on transitions. Pallets with poor bottom boards can behave unpredictably on narrow supports. Smooth products may need friction; fragile products may need gentler transfers; dusty or wet areas may need surfaces that can be cleaned without trapping debris.

4. Drive components and power transmission

Drive components convert power into conveyor motion. A typical drive group may include a motor, gearbox, motorized pulley, drive roller, sprocket, chain, timing belt, coupling, shaft, bearings, torque arm, guarding, and mounting plate. The exact arrangement depends on conveyor type, load, speed, duty cycle, available power, controls strategy, and maintenance preference.

Project engineers should avoid treating drive selection as a hidden supplier detail. The proposal should state the intended drive concept, not necessarily every proprietary dimension, but enough to confirm access, guarding, replacement space, electrical interface, and expected speed range. If the line has a rate target, drive assumptions should also be checked against conveyor capacity vs conveyor speed. A fast motor does not automatically create useful throughput if the layout has transfer, accumulation, or downstream limits.

5. Rollers, pulleys, bearings, and wear parts

Rollers, pulleys, bearings, and wear parts are small in comparison with the full conveyor, but they often control reliability and service time. For roller conveyors, roller material, diameter, pitch, bearing type, axle retention, and coating affect noise, tracking, load support, and replacement effort. For belt conveyors, pulleys, idlers, return rollers, belt cleaners, wear strips, and take-up components affect belt life and tracking stability.

When reviewing conveyor rollers or conveyor pulleys, ask which parts are standard spares, which are custom, and which can be replaced without moving adjacent equipment. A low-cost component can become expensive if the only replacement method requires dismantling guards, lifting the conveyor, or stopping a critical production line for longer than planned.

6. Guides, side rails, stops, and product control

Guides and product control components keep loads stable and correctly positioned. They may include side rails, adjustable brackets, lane dividers, end stops, pop-up stops, backstops, centering devices, escapements, pushers, lift gates, and reject devices. Their purpose is not only to prevent product from falling. They also define product pitch, orientation, release timing, scan position, and safe operator interaction.

Side guide design should consider product variation. A rigid guide that works for one carton size may damage a wider carton or fail to control a smaller one. Adjustable guides help mixed-product lines, but only if operators can set them accurately and repeatedly. For pallet loads, guides and stops must consider runner direction, fork access, unstable boards, and load overhang.

7. Transfer components and direction changes

Transfer points deserve separate attention because they combine geometry, motion, timing, and product behavior. A transfer can be a simple dead plate, a nose-over belt, a powered roller transition, a chain transfer, a right-angle transfer, a pop-up belt, a turntable, a pusher, a lift, or a merge. The best choice depends on product bottom surface, minimum length, transfer gap, speed, orientation, and required cycle time.

When a proposal includes a transfer conveyor, ask for the sequence in plain language. Which sensor confirms product arrival? What releases the load? What happens when the downstream section is full? How is the rejected or rotated load controlled? A drawing can show the equipment position, but the transfer logic explains whether the component can support the intended process.

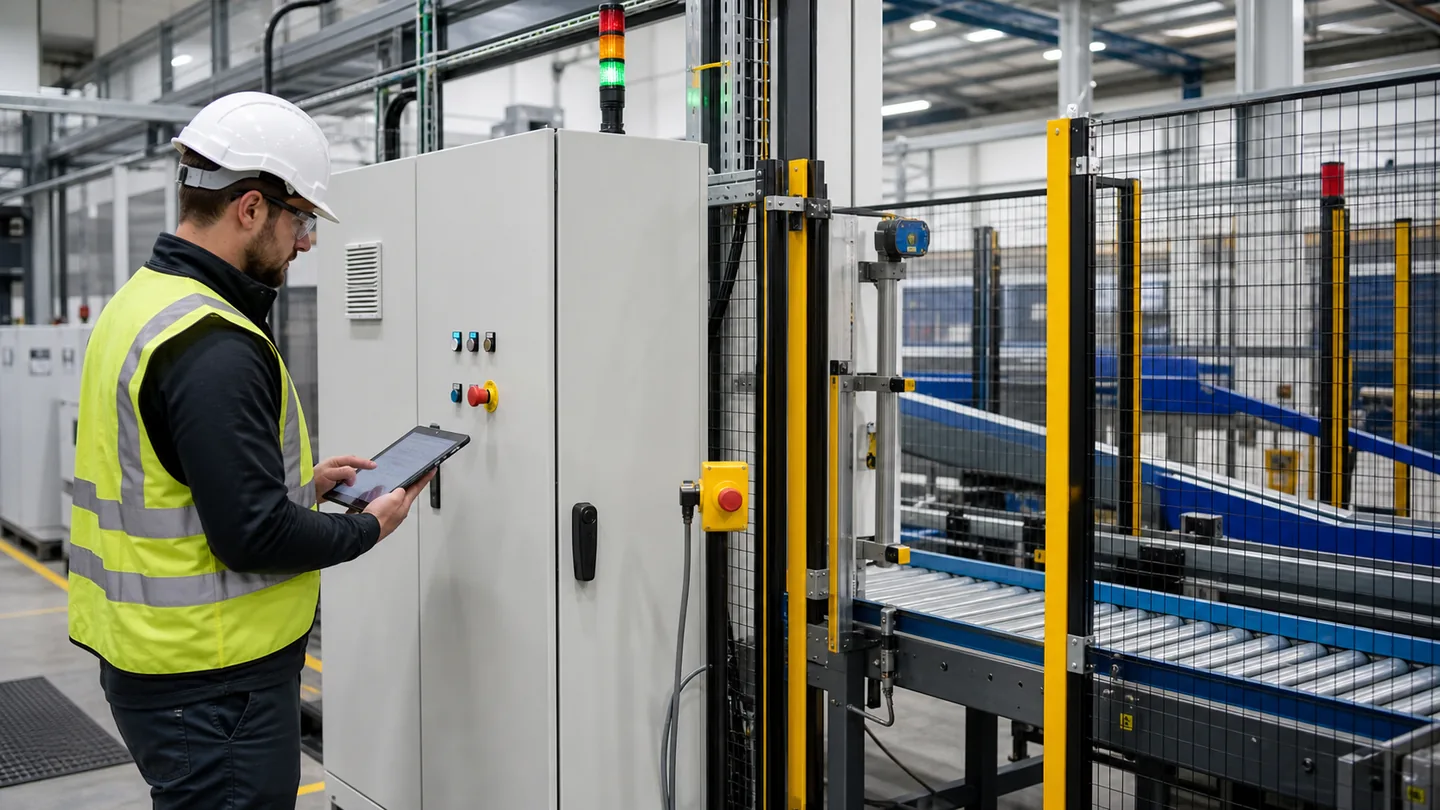

8. Sensors, controls, and operator interfaces

Controls are part of the conveyor system, not a separate afterthought. Sensors, photoeyes, encoders, barcode readers, scanners, VFDs, PLCs, control panels, HMI screens, push buttons, stack lights, e-stops, and safety circuits all affect how the mechanical line behaves. For simple manual movement, controls may be minimal. For automated conveyor systems, the control package is central to the project.

Project engineers should confirm responsibility boundaries early. Who provides the main control panel? Who programs the PLC? Who integrates upstream and downstream equipment? Who supplies network communication, field wiring, safety validation, and commissioning support? A conveyor component list that omits these items can make two quotes look similar when their real scopes are different.

9. Guarding, safety devices, and access components

Access review

Safety components include fixed guards, removable covers, interlocked doors, emergency stops, pull cords, light curtains, warning devices, safe access platforms, crossing points, and lockout points. The exact requirement depends on local regulations, plant standards, risk assessment, conveyor layout, and operator tasks. The supplier should not invent a safety claim without a documented basis, and the buyer should not approve a layout that leaves obvious pinch points or access conflicts unresolved.

Access is part of safety. Maintenance staff need room to inspect drives, change rollers, adjust tracking, clean debris, open cabinets, and reach sensors. During installation, installers also need space to level sections, align transfers, anchor supports, pull cable, and test movement. If a component cannot be reached after installation, it should be redesigned before fabrication.

10. Spares, documentation, and lifecycle components

A complete conveyor project should identify common spares and maintenance documentation. Spare rollers, belts, bearings, drive belts, sensors, guards, wear strips, and fasteners may not all be required on day one, but critical parts should be named clearly enough for future ordering. Drawings should show revision status, part identifiers, and the component groups that matter for maintenance.

For international projects, ask whether spare parts use standard dimensions that can be sourced locally or whether they must be ordered from the original supplier. There is nothing wrong with custom components when the application requires them, but the project team should understand the lead time and replacement method before the purchase order is issued.

11. How to compare component scope between suppliers

Two conveyor quotes may use the same title and still include different component scopes. One quote may include controls, guards, sensors, installation supervision, drawings, and commissioning. Another may include only mechanical equipment. One may assume a simple transfer; another may include a driven transfer device with logic and sensors. Price comparison is meaningful only after the component boundary is clear.

Create a short scope matrix before choosing a supplier. List frame, conveying surface, drives, guides, transfers, controls, sensors, safety devices, installation, drawings, spares, and after-sales support. Mark each item as included, excluded, buyer-supplied, or open. This method is especially useful when comparing carton conveyors, tote systems, pallet lines, and mixed conveyor routes inside one project.

12. What to send for an accurate component-based RFQ

A practical RFQ should let the supplier match components to the real application. Send load dimensions, weight range, product photos, bottom surface details, rate target, route sketch, infeed and discharge heights, available utilities, site constraints, cleaning needs, operating schedule, control responsibility, and any existing equipment interfaces. If the project includes pallets, include pallet type, runner direction, condition variation, and fork access requirements.

ConveyorSolution can review your load data, layout, rate target, and operating constraints before recommending component groups for a conveyor proposal. The strongest request is specific: what moves, where it moves, how fast it must move, what touches it, and who will maintain it.

Send your product details, conveyor route, and target throughput to request a component-based RFQ review.

How to read a conveyor layout drawing is a practical skill for any buyer who needs to approve a conveyor quote, compare proposals, or avoid installation surprises. A layout drawing is not only a picture of where the conveyor will sit. It is a working agreement about product flow, dimensions, elevations, transfer points, access space, controls, and the assumptions behind the price. If those items are not checked before approval, the project can still look correct on paper while leaving too little space for maintenance, creating an awkward transfer, or forcing a capacity target that the layout cannot support.

This guide is written for project engineers, plant managers, integrators, and procurement teams reviewing a conveyor proposal before fabrication or purchase. It does not assume a specific model, motor size, certification, or plant result. Instead, it gives a clear reading method you can use when checking a supplier drawing for a carton line, tote line, pallet line, packaging area, warehouse route, or mixed unit-load conveyor system.

1. Start with the drawing title block and revision status

Before looking at the conveyor path, check the title block. Confirm the project name, drawing number, revision, date, scale, units, and approval status. It sounds basic, but many drawing mistakes begin when one team reviews an old revision while another team is already quoting a newer layout.

Look for notes such as “for discussion,” “for approval,” or “for fabrication.” A discussion drawing may still contain open assumptions. A fabrication drawing should be treated much more strictly. If the layout is tied to a quote, make sure the quote number and drawing revision match. When they do not match, ask the supplier which document controls the scope.

Revision check

For larger industrial conveyor system design projects, keep a simple revision log. Record what changed, who approved it, and whether the change affects price, lead time, controls, installation, or building work.

2. Confirm the view, scale, and orientation

A conveyor layout may include a plan view, elevation view, side view, section view, or detail view. Do not assume every view shows the same information. The plan view usually shows the conveyor path across the floor. The elevation view shows heights, slopes, floor levels, and vertical interfaces. A section view may explain a narrow clearance, guard, support frame, transfer device, or product path.

Check the scale, but do not rely on printed scale alone. PDF scaling, screenshot review, and paper printing can all distort measurements. Use the written dimensions as the source of truth. If a dimension is missing, ask for it to be added rather than measuring from the screen.

Orientation matters as well. Confirm north arrows, building gridlines, column references, dock positions, machine numbers, or room names. If the drawing is mirrored or rotated from the way operators describe the area, mark the review copy clearly so the team does not approve a conveyor path in the wrong direction.

3. Trace product flow from infeed to discharge

Next, follow the product path from the first infeed point to the final discharge. Use the arrows on the drawing, but also compare them with the process sequence. A layout can look clean while still moving cartons against the intended packing flow, sending pallets into the wrong side of a transfer, or placing a discharge too far from the downstream machine.

For each conveyor section, ask three questions:

• Where does the load enter this section?
• What operation happens on this section, if any?
• Where does the load leave, stop, merge, rotate, transfer, accumulate, or elevate?

This flow check connects closely with throughput planning. If the path includes a scan, label, merge, stop, lift, or right-angle move, compare it with your rate assumptions from conveyor throughput calculations. A drawing that shows the path but not the control sequence may still be incomplete for approval.

4. Check the dimension chain, not only the overall length

Overall length is useful, but it is not enough. You need to understand the dimension chain: section lengths, centerline distances, transfer gaps, support spacing, aisle clearances, machine interfaces, floor openings, and distance to columns or walls. If the drawing gives only a total length, ask for the dimensions that make up that total.

Critical dimensions

Dimension chains are where many installation conflicts appear. A conveyor may fit inside a building envelope but leave too little clearance at a guard door. A roller section may fit between machines but place a support leg where a forklift path, floor drain, or anchor point already exists. A transfer may be dimensionally correct but leave no space to remove a motor or change a belt.

When reviewing custom conveyor systems and components, mark every critical interface on the drawing. Include upstream and downstream equipment, existing machines, walkways, guarding, access panels, electrical cabinets, air lines, and operator stations. The drawing should show the layout that will be installed, not a clean version with difficult details omitted.

5. Review conveyor width, load footprint, and guide clearance

Conveyor width should be checked against the actual load footprint, not only the nominal product size. Cartons can bulge. Totes can have rims. Pallets can vary by runner direction and board condition. Trays and fixtures may need side guide clearance or sensor visibility. If the drawing lists only conveyor frame width, ask whether that means overall width, belt width, roller face width, or between-frame dimension.

Also check how the load behaves at curves and transfers. A product that is stable on a straight belt conveyor may need a different guide approach near a merge. Short cartons on roller conveyors may need closer roller pitch or a belt transfer section. Pallets may require a wider stance, dedicated centering, or a different transfer style than cartons and totes.

The drawing should make the support concept visible enough for review. If it does not, ask for a section detail or product-on-conveyor sketch showing the load footprint relative to the conveyor surface and guides.

6. Read elevation, height, and slope carefully

Elevation errors are expensive because they often appear late. Check the top-of-conveyor height, top-of-roller height, belt surface height, support height, and any elevation changes across the route. Make sure the drawing uses the same reference point throughout. A drawing that mixes floor level, conveyor centerline, top of frame, and top of conveying surface can create confusion during installation.

For inclined or declined sections, confirm the slope and the product behavior. Some loads can handle a mild incline without issue. Others need cleats, side guides, a different belt surface, or a slower transition. If the conveyor connects to a machine, check the exact handoff height. A small mismatch can cause product impact, unstable transfer, or extra site work.

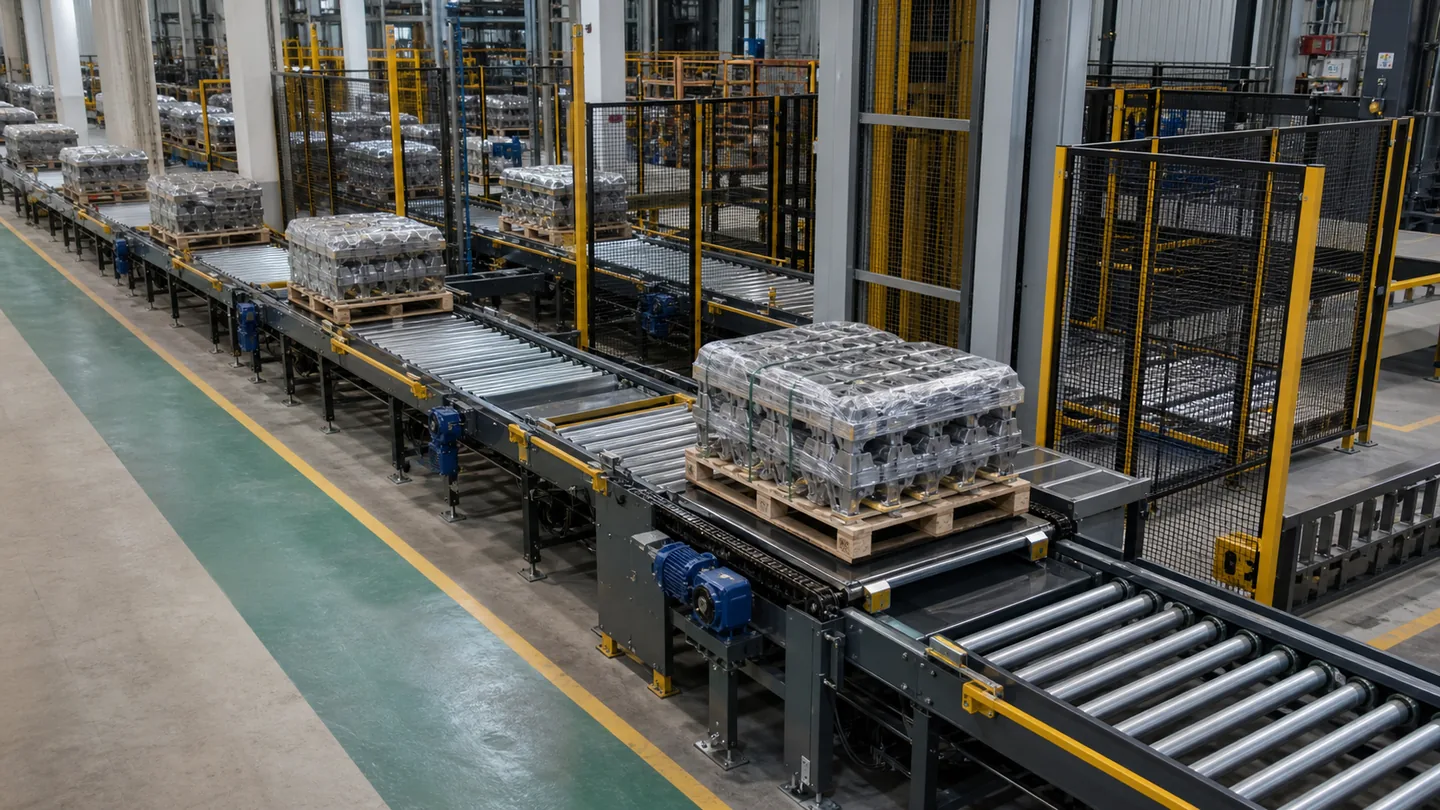

For pallet conveyors, elevation review is especially important at turntables, lifts, transfers, and accumulation zones. Pallet runner direction, fork pocket access, and load stability can all affect whether a height shown on the drawing works in practice.

7. Check transfer points and direction changes

Transfers deserve a slow review. They are often the difference between a conveyor that works smoothly and a conveyor that needs adjustment after installation. Look for every point where the load changes conveyor type, direction, elevation, speed, or control zone.

Transfer review questions

Common transfer questions include:

• Is the transfer gap suitable for the shortest product?
• Does the drawing show the load orientation before and after transfer?
• Is there enough space for a pop-up, belt transfer, chain transfer, pusher, lift, or turntable?
• Can maintenance staff reach the drive, sensor, guard, or actuator after installation?
• Does the transfer cycle support the required rate?

When a layout includes a transfer conveyor, ask the supplier to describe the transfer sequence in words. A drawing shows geometry, but sequence notes explain timing, sensor logic, product release, and blocked-line behavior.

8. Compare the drawing with capacity and speed assumptions

A drawing should be read together with the rate basis. If the proposal states a conveyor speed or target capacity, check whether the layout actually supports that result. The route may include a merge, scan, manual station, transfer, lift, or accumulation zone that limits practical throughput even when the straight conveyor sections can run faster.

This is where the drawing connects with conveyor capacity vs conveyor speed. Speed is only one input. Capacity depends on product pitch, gaps, transfer cycles, release logic, and downstream machine acceptance. If the drawing has no notes for those items, ask for a basis-of-design table before approval.

9. Confirm access, guarding, and maintenance space

A conveyor can fit the building and still be difficult to use. Check operator access, e-stop reach, guard openings, cleanout space, drive access, belt take-up access, roller replacement space, and cabinet door swing. Do not approve a layout only because the conveyor centerlines fit inside the floor area.

Maintenance access should be shown or noted near drives, sensors, transfer devices, curves, and elevated sections. If the equipment will be placed against a wall or near another machine, ask how staff will replace wear parts or adjust tracking. This is also relevant for conveyor installation, because installers need space for alignment, leveling, anchoring, wiring, and commissioning.

Safety review should include guarding, pinch points, crossing points, emergency stops, operator stations, and forklift interaction. The drawing does not replace a site safety assessment, but it should give enough information for the buyer and supplier to identify obvious risks before fabrication.

10. Look for controls, sensors, and zone logic

Many conveyor layout drawings show mechanical equipment clearly but leave controls vague. For manual conveyors, that may be acceptable. For automated lines, it is not enough. Check whether sensors, stops, scanners, accumulation zones, reject points, cabinet locations, and operator controls are shown or listed in a separate control drawing.

On automated conveyor systems, the physical conveyor path and the control sequence must agree. A zero-pressure accumulation layout needs zone lengths and release logic. A merge needs priority rules. A barcode or vision station needs spacing, speed, and product orientation. A pallet transfer needs confirmation of position, release, and blocked-line handling.

If controls are not finalized, mark them as open assumptions. That is better than approving a drawing that looks complete but hides important sequence decisions.

11. Mark open items before approval

Do not treat drawing review as a yes-or-no step. Use it to separate confirmed scope from open assumptions. A clean approval package should list what is accepted, what is excluded, and what still needs buyer confirmation.

Useful open items include floor conditions, anchor limits, utility routes, exact machine interface heights, product samples, pallet quality, controls responsibility, installation responsibility, and site access restrictions. If any of these items affect the conveyor layout, they should be visible in the approval record.

A short review note can prevent later arguments. For example: “Approved for conveyor centerline and overall route; pending confirmation of downstream machine handoff height and scanner spacing.” That kind of approval is more useful than a vague email saying the drawing looks fine.

12. What to send with your RFQ or approval comments

If you want a supplier to respond accurately, send more than a screenshot. Provide the layout drawing, product data, target throughput, site photos, existing equipment dimensions, floor constraints, and process sequence. If the project is still early, say which assumptions are flexible and which are fixed.

A practical RFQ package should include:

• load type, dimensions, weight range, and travel orientation
• required units per hour or units per minute
• site layout with columns, walls, doors, docks, drains, and machine interfaces
• infeed and discharge heights
• transfer, merge, accumulation, scan, reject, or lift requirements
• available power, controls expectations, and communication with other machines
• photos or videos of the current line when replacing or extending equipment

ConveyorSolution can review your layout, product data, and rate target before quotation so the proposal reflects the actual site constraints. If you are comparing drawings from multiple suppliers, send the current revision and the main approval questions. The best review is specific: one drawing, one product path, one list of open assumptions.

Send your conveyor layout drawing, product dimensions, and target throughput to request a technical RFQ review.

Conveyor capacity vs conveyor speed is one of the most common points of confusion in conveyor buying. Speed tells you how fast the conveyor surface moves. Capacity tells you how many unit loads the section can move through the process in a given time. Buyers often ask for a faster conveyor when the real problem is a short transfer cycle, an oversized product gap, unstable cartons, or blocked discharge downstream. If those constraints are not defined, the quoted speed can look impressive while the delivered line rate stays unchanged.

This article is for engineers, plant managers, system integrators, and procurement teams comparing conveyor proposals for boxes, totes, and pallets. It stays practical. It does not invent model-specific output claims, motor sizes, or plant results. Instead, it explains what information a buyer should specify so a supplier can judge whether the requested rate is realistic across the full process, not only on a straight conveyor run.

1. Conveyor speed describes motion, but capacity describes delivered flow

Conveyor speed is usually expressed in meters per minute or feet per minute. It is a mechanical setting for the moving surface. Capacity is the throughput the section can sustain in units per minute or units per hour. A conveyor can run fast and still have poor capacity if products need wide gaps, if the load is unstable, or if the discharge point releases one load at a time.

That difference matters in purchasing discussions. A supplier may truthfully state that a section can run at 30 m/min, but that does not guarantee the process will deliver 30 cartons per minute. The real capacity depends on how much line length each load occupies, what spacing the controls require, and whether the next machine or transfer accepts products continuously.

For early planning, speed is one input. Capacity is the outcome you care about. Buyers should always state the desired throughput first and then ask what speed, gap, controls, and section design are needed to achieve it.

2. Why two conveyors at the same speed can deliver different capacity

Consider two conveyor sections both running at 18 m/min. One carries short cartons with a modest gap on a simple straight run. The other carries longer totes that must pause for scanning before a merge. Even though the surface speed is identical, the first section may deliver a much higher unit rate because each load consumes less pitch and sees fewer interruptions.

The same principle applies to pallets. A pallet conveyor may not need a dramatic running speed to meet demand, yet its practical capacity can be low because the line includes stops, transfers, lifts, or locating devices with fixed cycle times. In that case, increasing speed on the straight section does little. The bottleneck sits elsewhere.

This is why rate discussions should cover the full process path: infeed, transport, accumulation, transfer, merge, scan, discharge, and machine interface. Buyers who specify only speed often receive proposals that answer the wrong question.

3. Start with the controlling load, not the average load

Capacity should be built around the controlling case. For cartons, that may be the shortest box, because support and sensing become difficult at transfers. For totes, it may be the widest or most flexible container, because guide contact and release timing change. For pallets, it may be the longest occupied length or the pallet with the least stable runner orientation.

Average load data hides the cases that usually cause trouble in commissioning. A line that looks fine around one nominal carton can lose capacity quickly when smaller boxes arrive with wider required gaps. Likewise, a pallet section that seems adequate on straight movement can slow down once the real transfer timing is added.

Before requesting a proposal for custom conveyor systems and components, buyers should define the load range clearly:

• load type: box, tote, tray, pallet, or carrier
• length, width, height, and weight range
• bottom condition and support sensitivity
• travel orientation and whether the load may rotate
• whether touching accumulation is allowed
• any scan, label, reject, or transfer operation that needs clear spacing

That information helps the supplier determine which load actually governs the rate target instead of assuming an average case that never appears on the line for long.

4. Product pitch links speed to first-pass capacity

The simplest bridge between speed and capacity is pitch. Pitch is the occupied length per load in the direction of travel. It equals the load length plus the operating gap. If a carton uses 450 mm of length and needs a 150 mm gap, the pitch is 600 mm. If the conveyor runs at 18 m/min, the first-pass transport capacity is 30 loads per minute.

That relationship is useful, but it is only a first-pass planning tool. It tells you the maximum flow on a clean, continuous section. It does not prove the full process can sustain that rate.

Pitch also varies by application. On belt conveyors, small or unstable loads may run with tighter support but still need spacing for scans or diverts. On roller conveyors, the smallest load may need more conservative pitch if support, tracking, or photoeye performance becomes marginal.

Whenever a buyer asks, “How fast should the conveyor run?” the better question is, “What pitch does the process require, and what rate do we need at that pitch?”

5. Transfers, merges, and scans often set the real capacity

A straight conveyor run is rarely the part that limits performance. Practical capacity is often reduced by a right-angle transfer, a scanner that needs product separation, a pusher reject, a merge release, or an operator handling step. These features introduce cycle time or spacing rules that can be more important than surface speed.

For example, a line may have enough running speed to support 32 cartons per minute on pitch alone. But if the discharge transfer reliably moves only 24 cartons per minute, then 24 is the practical capacity unless accumulation and release logic absorb the difference. The same issue appears on pallet sections when a transfer device indexes one load at a time.

This is especially important on systems with transfer conveyors or multi-branch routing. Buyers should specify every place where a load changes direction, stops, merges, or must be individually detected. Those details decide whether the quoted speed is useful or merely theoretical.

6. Accumulation strategy changes how much capacity is usable

Accumulation is not just a buffer; it changes the way capacity is delivered. A line with zero-pressure zoning may maintain product separation well, but the release logic can still cap throughput if zone lengths are short or discharge permissions are slow. A line without accumulation may show a high straight-run rate but lose capacity the moment downstream equipment hesitates.

Buyers should state what happens during normal variation:

1. Can upstream flow continue while downstream equipment pauses briefly?
2. How much buffer length is available before the line backs up?
3. Must products remain separated, or is touching accumulation acceptable?

These questions matter for automated conveyor systems where software logic and release control affect realized throughput as much as mechanical motion. If the supplier receives only a target speed, none of this can be evaluated properly.

7. Conveyor type and load support affect the capacity you can trust

Capacity is not purely about math. It also depends on whether the selected conveyor type supports the load well enough at the requested rate. Boxes with weak bottoms may need continuous support. Short cartons can skew on rollers if support spacing is poor. Totes may track well in straight runs but react differently at curves, merges, and diverts. Pallets may need dedicated control logic and robust locating devices even at moderate unit rates.

Conveyor rollers and powered roller zones can be effective where cartons or totes have stable bottoms and controlled spacing. Belt sections can be better for small, irregular, or lightly supported loads. Pallet conveyors may be necessary when the process includes heavy loads, transfers, lifts, or staged release of unitized products.

For buyers, the important point is this: capacity claims should be checked against actual support conditions, not just against nominal line speed. If the load behaves poorly at the requested rate, the capacity is not usable in production.

8. What buyers should specify in the RFQ

A good RFQ does not ask for “high speed.” It defines the result the conveyor must deliver and the assumptions behind that result. The supplier should understand not only the target units per hour, but also the load range, required gaps, control features, and all rate-limiting operations on the path.

A practical RFQ package should include:

• normal and peak throughput target in units per minute or units per hour
• controlling load dimensions and full load range
• required product gap and the reason for that gap
• all transfers, merges, scans, labels, stops, and lifts
• accumulation expectations and blocked-line behavior
• travel orientation, floor layout, and elevation changes
• photos, sketches, and the process sequence around the conveyor

When buyers provide this level of detail, suppliers can judge whether higher speed really increases capacity or whether the better answer is different zoning, another transfer concept, or a revised section layout.

A clear review meeting beside the layout usually reveals more than a single spreadsheet number.

9. Use a short worksheet to compare speed and capacity assumptions

Comparing proposals becomes easier when every supplier works from the same worksheet. One useful format is shown below. It does not replace detailed engineering, but it forces the commercial discussion to stay tied to process limits instead of abstract speed claims.

With this worksheet in hand, the buyer can see whether a proposal improves capacity by increasing speed, reducing pitch, shortening a transfer cycle, or changing section logic. That is far more useful than comparing motor speed numbers in isolation.

10. Common buying mistakes when speed is confused with capacity

• asking for maximum speed without stating the required unit throughput
• using average load dimensions instead of the controlling load
• ignoring scan, label, merge, or transfer spacing needs
• assuming straight-run speed will overcome downstream cycle limits
• forgetting to describe accumulation expectations
• choosing a conveyor type before checking support and stability at rate
• sending an RFQ with no process sequence or layout context

These errors usually lead to rework later. The line is then forced to run slower, gaps are widened after installation, or extra accumulation is added because the original buying basis was incomplete.

11. Ask the supplier to validate the full rate path, not only the running speed

A useful supplier response should explain what part of the system governs capacity and what assumptions support the quoted result. If the answer is only a speed number, ask the supplier to show the basis: pitch, release timing, transfer cycle, accumulation logic, and controlling load. That is the level where practical differences between proposals become visible.

PALET builds conveyor solutions for boxes, totes, pallets, and mixed unit-load applications. If you are reviewing a new line or replacing an underperforming section, share the load data, target throughput, layout, and process sequence first so the design team can judge whether the issue is speed, capacity, or another process constraint.

Send your layout, target units per hour, and load range to request a technical conveyor proposal

To calculate conveyor throughput for boxes, totes and pallets, start with the load length in the direction of travel, add the operating gap, and then compare that pitch with the line speed and downstream cycle time. That simple calculation is the foundation, but it is not the whole answer. Transfers, accumulation rules, photoeye spacing, pallet construction, and line balancing can all reduce the practical rate that a system can sustain.

This guide is written for engineers, factory managers, integrators, and purchasing teams that need a realistic throughput estimate before they request equipment layouts or quotations. It focuses on unit loads rather than bulk materials, and it avoids assuming a fixed conveyor model, motor size, or plant-specific performance value. The goal is to create a defensible planning number that can later be checked against detailed supplier calculations.

1. Define throughput in units, not speed alone

Many RFQs mention only conveyor speed, but speed by itself does not tell you how many loads the line can move. Throughput should be defined in units per minute or units per hour, with separate values for normal demand and peak demand.

A useful planning relationship is:

Throughput = conveyor speed / product pitch

In this context, product pitch means the occupied length per load: the product length in the travel direction plus the intended gap to the next load. If you know the target throughput instead, rearrange the same relationship:

Required conveyor speed = target throughput x product pitch

That number is only a first-pass answer. The actual system rate may be limited by merge logic, scanners, operator handling, transfer conveyors, downstream machines, or the accumulation strategy used between zones.

2. Collect the load data before doing any math

Throughput calculations fail when the load description is incomplete. Record the full product range rather than a single average carton or pallet. The smallest load often governs support and sensor spacing, while the largest or least stable load may govern speed, acceleration, or gap.

Collect at least these inputs:

• Load type: box, tote, pallet, tray, carton bundle, or custom carrier
• Length, width, and height range
• Weight range
• Bottom condition: flat, ribbed, soft, damaged, open-deck, or flexible
• Travel orientation and whether it can rotate
• Required gap for sensors, diverts, labeling, scanning, or manual handling
• Whether touching accumulation is allowed
• Environmental factors such as dust, moisture, oil, or washdown

For mixed product lines, do not assume that one pitch fits every case. The design basis should identify the controlling case for rate, the controlling case for stability, and the controlling case for support on roller conveyors or belt conveyors.

3. Calculate product pitch correctly

Pitch is the space one load consumes along the conveyor. It equals the load length in the direction of travel plus the operational gap required between loads. If a box is 400 mm long and the line needs a 100 mm clear gap, the pitch is 500 mm, or 0.5 m.

The operational gap should reflect the real process rather than a guess. A line with a barcode reader, printer, pusher reject, or merge may need more gap than a simple straight transport section. If the line uses zero-pressure accumulation, the gap may be created dynamically by zone logic rather than mechanically fixed spacing, but it still affects the maximum sustainable rate.

For planning, it helps to state pitch in both millimeters and meters so it can be reused in layout discussions, sensor spacing reviews, and formula checks.

4. Convert the target rate into conveyor speed

Once pitch is defined, convert the target demand into conveyor speed. Suppose a line must deliver 30 boxes per minute and each box requires a 0.5 m pitch. The first-pass speed is 15 m/min. If the same line needs to handle a 45-box-per-minute peak, the speed requirement rises to 22.5 m/min unless another buffer or accumulation strategy reduces the instantaneous demand at that section.

This is why line-rate discussions should always separate average demand from peak release demand. A process that discharges in bursts may need local accumulation and controls even when the hourly average looks modest.

A quick reference table is useful during early planning:

These examples are planning calculations, not fixed equipment ratings. The final line speed still has to match transfer design, product stability, control sequence, and the selected conveyor technology.

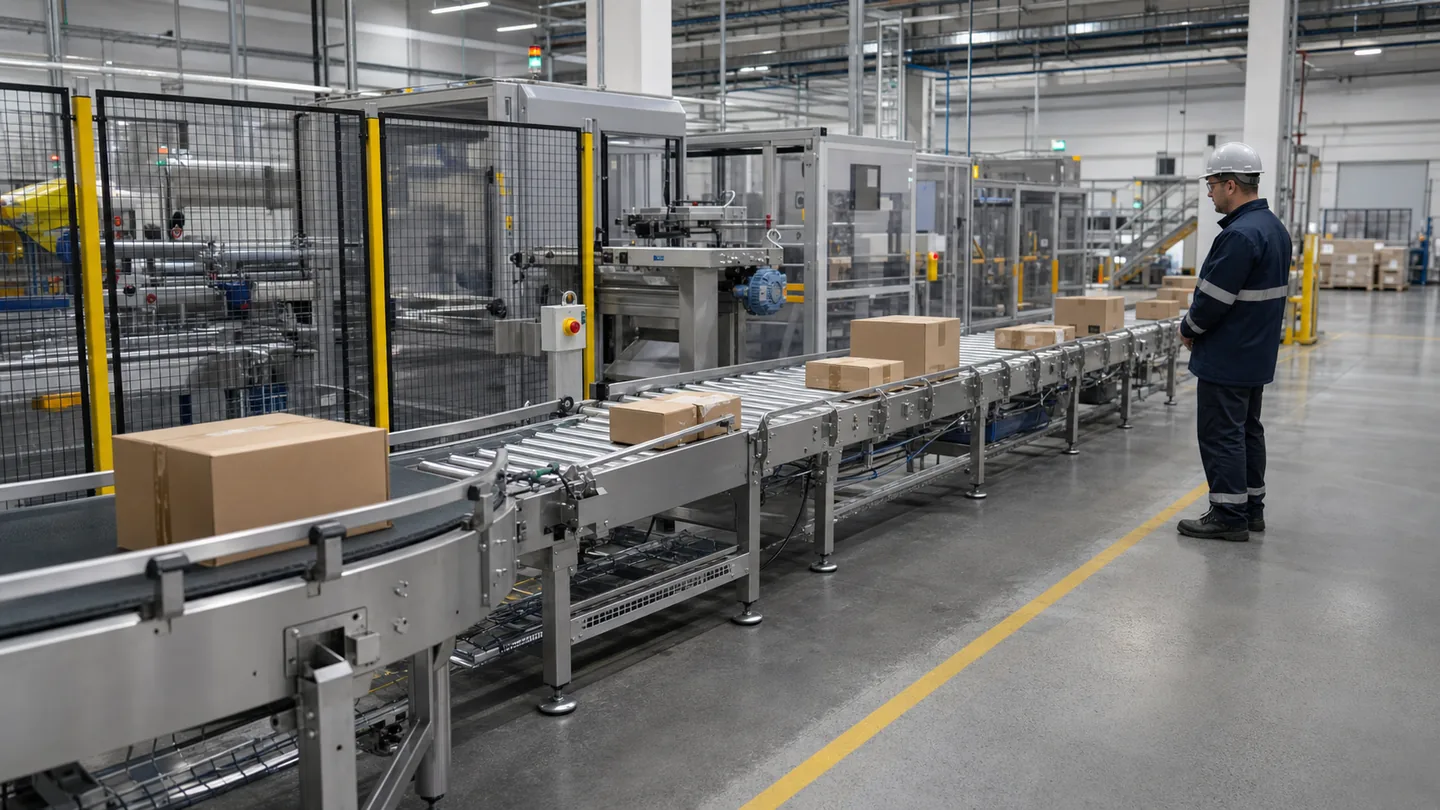

5. Check boxes and cartons against support, sensing, and gaps

Boxes and cartons are often the easiest loads to model, but they still create errors when the smallest footprint is ignored. A line may be rated around a medium carton while the real operating issue comes from a much shorter or lighter box that behaves differently at a transfer.

On roller conveyor systems, the practical rate depends not only on pitch but also on roller support. If too few rollers sit under the shortest carton, it can rock, skew, or hesitate. Sensor locations also matter. A short box may need more conservative gap spacing if the controls must reliably detect leading and trailing edges.

Where cartons pass through multiple handoff points, keep the throughput model aligned with the slowest transfer or inspection step rather than the fastest straight run.

6. Evaluate totes as controlled unit loads, not ideal rectangles

Totes often behave more consistently than cartons, but they still need accurate pitch assumptions. Handle features, ribbed bottoms, nesting risk, and side-guide contact can affect accumulation and release behavior. If a line includes scanners, weigh stations, or merge sections, the tote pitch may need to stay wider than the pure transport math suggests.

For distribution and automation applications, totes are frequently used with zoned controls and automated conveyor systems. In those cases, the theoretical rate from speed and pitch should be compared against the zone release logic and the response time of downstream equipment. A short zone or slow release sequence can reduce realized throughput even when the belt or rollers could physically move faster.

Totes also deserve a stability check at diverts and turns. If the line design assumes a narrow gap to maximize rate, verify that guide rails, transfer devices, and product tracking can still operate without side contact or jams.

7. Model pallets around true occupied length and transfer time

Pallet sections usually run at lower unit rates than box or tote lines, so each missed assumption has a bigger effect. A pallet throughput estimate should include pallet length in the direction of travel, the required gap for stops or transfers, and the cycle time of right-angle movement, lifting, or locating devices.

For example, a pallet line may have enough straight-run speed to support a higher rate, but the actual bottleneck may be a transfer that moves one pallet at a time. In that case, the system throughput is governed by the transfer cycle, not the straight conveyor speed.

Pallet conveyors also require attention to pallet construction and runner direction. If a pallet behaves differently on roller and chain sections, the practical gap and release timing may need to be widened. That is why pallet calculations should be reviewed with both the layout and the control sequence in view, not as a standalone speed exercise.

8. Add accumulation, downtime, and line balancing to the calculation

Throughput planning becomes more realistic when you ask what happens during brief stops, slowdowns, or unequal machine cycles. If the upstream section can feed 30 units per minute but the downstream process intermittently accepts only 24, the average line rate will eventually be set by the slower step unless a buffer absorbs the mismatch.

Three questions help expose this limit:

1. What is the slowest recurring downstream step?
2. How much buffer exists between the fast and slow sections?
3. What happens during micro-stops or blocked discharge conditions?

A planning number for sustainable throughput should therefore be based on the minimum of three values: straight-run transport capacity, transfer or zone-release capacity, and downstream process capacity. If the project needs a guaranteed output target, the RFQ should state both the target rate and the operating assumptions behind it.

9. Review the conveyor type against the rate target

Not every section should use the same conveyor technology. Belt conveyors can support small or unstable loads well because the product sees continuous support. Conveyor rollers and powered roller sections can be effective for boxes and totes with suitable bottoms, especially where zoned accumulation is useful. Heavy unit loads, locating operations, or interface points with machinery often lead the design toward dedicated pallet conveyor sections.

The key point is that throughput should be checked against the real function of each section. A straight transport run, an accumulation section, and a right-angle transfer may each need different logic and different assumptions even within one line.

10. Build a simple RFQ worksheet from the calculation

Before requesting drawings or pricing, convert the throughput estimate into a short worksheet. A supplier can do better engineering when the target rate is backed by clear inputs instead of a vague request for “fast” or “high-capacity” conveying.

A useful worksheet should include:

• Normal and peak units per hour or units per minute
• Load dimensions, weight range, and travel orientation
• Load length in travel direction and required gap
• Calculated pitch and first-pass speed requirement
• Downstream machine cycle time or release limit
• Accumulation expectations and blocked-line behavior
• Required transfers, merges, lifts, or scans
• Photos, sample drawings, and layout constraints

That same worksheet can be used to compare proposals on a like-for-like basis. It also makes it easier to discuss where the supplier should confirm rate by testing, control logic, or detailed mechanical calculations.

11. Common mistakes in throughput calculations

• Using conveyor speed as if it were the same thing as capacity
• Ignoring the operating gap required for sensors, scanning, or diverts
• Calculating around an average load instead of the controlling load
• Forgetting that transfer devices may set the true line rate
• Ignoring accumulation and blocked discharge conditions
• Assuming pallet lines behave like carton lines
• Skipping support checks for the smallest carton or tote
• Sending an RFQ without a stated throughput basis

Start with pitch, then validate the whole process

The fastest way to improve a conveyor throughput estimate is to define pitch clearly and then test it against the full process: transfers, zone logic, downstream equipment, and load stability. That approach gives you a planning number that is useful for layout reviews and RFQs without pretending to replace detailed engineering.

PALET designs and manufactures custom conveyor systems and components for boxes, totes, pallets, and other unit loads. If you need help reviewing line rate assumptions, product data, or layout constraints, send the load details, target throughput, and process sequence before final equipment selection.

Send your layout, throughput target, and unit-load data to request a technical proposal

Industrial conveyor system design starts long before a supplier selects a belt, roller, motor, or frame. A reliable design begins with the product, the required flow rate, the process sequence, and the conditions around the line. If these inputs are incomplete, even well-made equipment can have transfer problems, unstable accumulation, poor access, or controls that do not match the production process.

This planning framework helps project engineers, factory managers, integrators, and purchasing teams prepare a conveyor project before requesting drawings and quotations. It is intended for packaged goods, cartons, totes, pallets, components, and similar unit loads. Bulk-material conveyors require additional calculations and application-specific engineering.

1. Define what the conveyor must move

The conveyed item is the first design input. Record the full range of products rather than using only an average carton or pallet. The smallest, largest, lightest, and heaviest items may each create a different design constraint.

Collect the following information:

• Product type: carton, tote, bag, tray, pallet, component, or custom carrier
• Minimum and maximum length, width, and height
• Minimum and maximum weight
• Bottom surface: flat, ribbed, soft, uneven, damaged, or open
• Center of gravity and load stability
• Temperature, moisture, dust, oil, chemicals, and washdown exposure
• Contact requirements for food, pharmaceutical, or clean production areas
• Orientation requirements at the conveyor inlet and outlet

Product footprint matters because it affects roller pitch, conveyor width, side-guide position, transfer design, and curve selection. For example, a small carton can become unstable if too few rollers support it. A soft bag may not travel consistently on a conventional roller conveyor. A tall pallet load may need slower acceleration and a larger turning radius than a low, stable load.

2. Calculate the required throughput

Throughput should be defined in units per minute or units per hour. Belt speed alone does not describe system capacity. The design also depends on product length, operating gap, accumulation method, start-stop behavior, and the time required by downstream equipment.

A useful first estimate is:

Required conveyor speed = product pitch × required units per minute

Product pitch is the product length in the direction of travel plus the planned gap. This is only a starting point. The final speed must account for acceleration, transfers, merges, operator interaction, scanning, rejection, buffering, and downstream cycle time.

Document both normal and peak demand. If a line normally handles 600 cartons per hour but receives short periods at a much higher rate, the accumulation and controls should be designed around the real operating pattern. Also identify what happens during a stop. Products may need to queue, divert, recirculate, or stop upstream.

3. Map the process before selecting equipment

Create a simple material-flow diagram showing every pickup point, transfer, inspection, processing station, buffer, reject point, and discharge location. A clear process map prevents the conveyor from being treated as an isolated machine.

Mark these items on the layout:

• Infeed and discharge elevations
• Available floor space and ceiling height
• Columns, doors, fire routes, utilities, and existing machines
• Operator positions and maintenance access
• Forklift and pedestrian traffic
• Required curves, inclines, declines, lifts, and cross-transfers
• Control-panel and electrical-service locations
• Future extension points

A scaled drawing is preferable, but a marked-up factory layout can be enough for an early technical discussion. Include dimensions and reference points that a supplier can verify.

4. Choose the conveyor type around the load and process

No single conveyor type is best for every section of a line. Many systems combine different technologies.

Belt conveyors

Belt conveyors provide continuous support and are often suitable for cartons, bags, small components, and products with uneven bottoms. Belt material, surface friction, tracking, cleaning, incline angle, and product transfer all require attention. Flat, inclined, curved, modular, and telescopic configurations serve different tasks.

Roller conveyors

Roller conveyor systems are commonly used for cartons, totes, trays, and other loads with suitable bottom surfaces. Gravity rollers can support manual or slope-driven movement. Powered rollers suit controlled transport, accumulation, and automated lines. Roller diameter, pitch, tube material, shaft, bearing, and drive method should match the product and duty cycle.

Pallet conveyors

Pallet conveyors are designed for heavier unit loads and interfaces with production cells, storage systems, turntables, transfers, lifts, and automated equipment. Pallet construction and runner direction must be confirmed. A pallet that works on a chain conveyor may need a different support arrangement on a roller conveyor.

Transfers and vertical movement

Side transfers, pop-up transfers, turntables, lifts, and elevators solve changes in direction or elevation. These devices add cycle time and control requirements, so they should be included in the throughput calculation rather than added after the main conveyor is sized.

5. Design each transfer point

Transfers are frequent sources of jams and product damage. Review the transition between every conveyor section and between the conveyor and connected machines.

Check:

• The physical gap between surfaces
• Changes in speed, height, direction, and support
• The smallest product footprint
• Leading-edge shape and bottom condition
• Product stability during acceleration or deceleration
• Side-guide transitions
• Sensor position and response time

Small items may need a nose bar, knife-edge transfer, closely spaced rollers, a transfer plate, or another transition method. Heavy loads may require powered transfers and mechanical stops. Testing with real products is valuable when packaging quality varies.

6. Specify accumulation and control logic

Accumulation creates a buffer between processes. The correct method depends on whether products may touch, how much back pressure they can tolerate, and how the downstream machine requests product.

Define the operating sequence in plain language before programming begins. For example:

1. The upstream machine releases a carton.
2. A sensor confirms that the entry zone is clear.
3. The carton moves to the next available zone.
4. The downstream machine sends a ready signal.
5. The final zone releases one carton.
6. A blocked sensor or drive fault stops the required sections and reports an alarm.

The control specification should identify sensors, motors, variable-frequency drives, motor-driven rollers, PLC interfaces, safety circuits, HMIs, scanners, reject devices, and communication protocols. Clarify which party supplies the panel, field wiring, programming, and integration with other equipment.

7. Select mechanical components for the real duty

Component selection should reflect operating hours, starts per hour, load, environment, and maintenance expectations. A line that runs one shift has a different duty from a distribution conveyor operating continuously.

Key mechanical decisions include:

• Frame material and finish
• Conveyor bed or roller construction
• Roller diameter, pitch, shaft, bearing, and coating
• Belt material, width, splice, tracking, and tensioning method
• Pulley diameter, shaft, lagging, and bearing arrangement
• Drive position, motor power, gearbox ratio, and speed control
• Supports, leveling range, anchors, and expansion joints
• Side guides, stops, guards, covers, and drip trays

Final motor sizing and structural checks require project-specific calculations. The supplier should confirm load cases, friction, incline, acceleration, drive efficiency, shaft loads, and service factors before production.

8. Include safety and maintenance in the layout

Safety cannot be added as a final accessory. The design team should review nip points, rotating parts, transfers, unexpected movement, falling loads, electrical hazards, access platforms, emergency stops, and isolation procedures. Applicable local laws, machine-safety standards, and the end user’s risk assessment must guide the final design.

Maintenance access is equally important. Leave room to remove belts, rollers, motors, gearboxes, bearings, sensors, and guards. Identify lubrication points, inspection areas, cleaning requirements, spare parts, and the method for safely isolating energy. A compact layout that blocks routine service often creates higher operating cost later.

9. Plan installation and commissioning

Before ordering, define how the system will reach the installation area. Check door dimensions, lifting access, floor loading, section lengths, shipping limits, and assembly space. Decide whether the conveyor will arrive fully assembled, in modules, or as loose components.

A commissioning plan should include:

• Mechanical alignment and fastener checks
• Belt tracking or roller rotation checks
• Sensor and device testing
• Safety-circuit validation
• Dry running without product
• Testing with minimum, maximum, and difficult products
• Throughput and accumulation tests
• Alarm, stop, restart, and recovery tests
• Operator and maintenance training
• Final drawings, manuals, and spare-parts records

10. Prepare a useful conveyor RFQ package

A detailed request for quotation helps suppliers propose comparable solutions. It also reduces assumptions that later become change orders.

Common conveyor planning mistakes

• Selecting a conveyor from product weight alone
• Using nominal speed as the only throughput calculation
• Ignoring the smallest or least stable product
• Leaving transfers and accumulation until late in the project
• Not defining the control sequence and supplier scope
• Forgetting maintenance removal space
• Requesting quotations without a layout or product data
• Assuming one conveyor technology should serve the entire line

Start with the operating data, not a catalog model

A good industrial conveyor system design connects mechanical equipment, controls, safety, maintenance, and production requirements. The most useful first step is to create a short design basis that everyone can review. Once the product range, throughput, process, layout, and interfaces are clear, the equipment can be selected and priced with fewer assumptions.

PALET designs and manufactures custom conveyor systems and components, including belt conveyors, roller conveyors, pallet conveyors, rollers, pulleys, and transfer equipment. For a project review, send your product data, layout, required throughput, operating environment, and control requirements.

Send your conveyor layout and request a technical proposal
